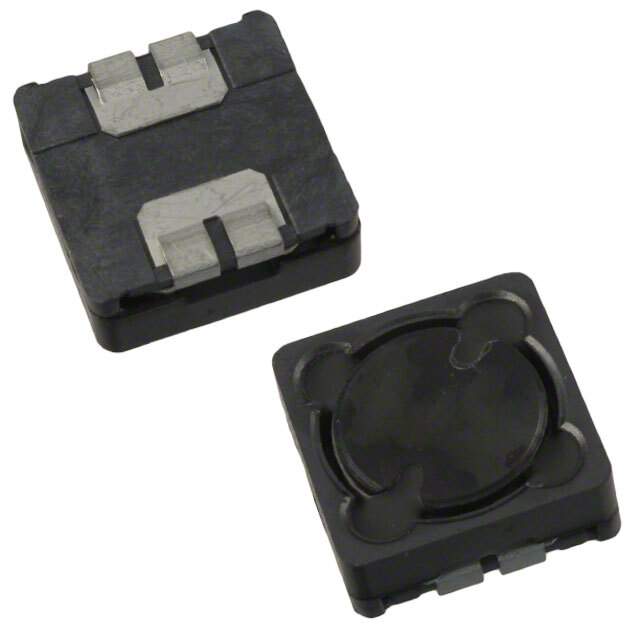

SRR1205-750YL Real Image
Same model may have multiple batches, images only for reference.

SRR1205-750YL

Part No SRR1205-750YL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1205-750YL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1205
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 75 µH
Tolerance ±15%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 2.2A
Shielding Shielded
DC Resistance (DCR) 330mOhm Max
Q @ Freq 17 @ 2.52MHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Product Number SRR1205
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273533-SRR1205-750YL
Ultra Librarian 3D Model Ultra Librarian SRR1205-750YL CAD Model

Description

The SRR1205 series of drum core, wirewound inductors from Bourns Inc. are designed to offer high inductance values with a tolerance of ±15%.

  • Construction: Shielded
  • Core Material: Ferrite
  • Q @ Freq: 17 @ 2.52MHz
  • Frequency Self-Resonant: 6MHz
  • DC Resistance: 330mOhm Max
  • Current Rating: 1.2A
  • Applications: Power supply, filtering, and DC/DC converters
  • Package/Case: Nonstandard
  • Temperature Range: -40°C to 125°C
