Same model may have multiple batches, images only for reference.

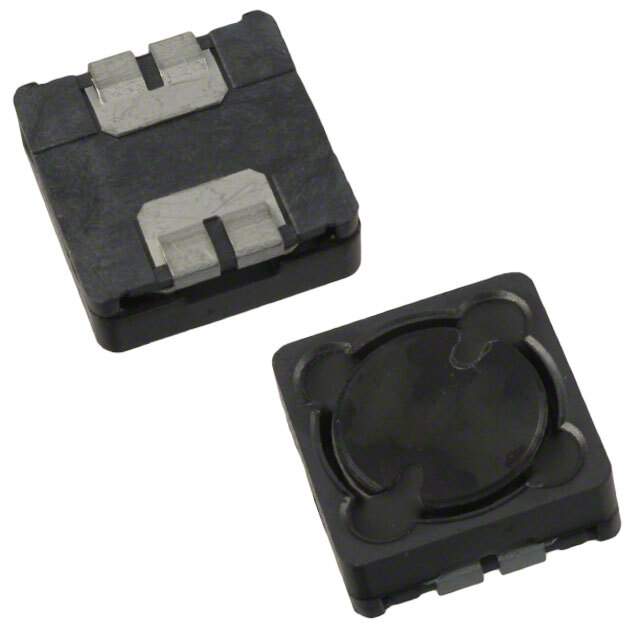

SRR1205-500YL Real Image
Same model may have multiple batches, images only for reference.

SRR1205-500YL

Part No SRR1205-500YL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1205-500YL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1205
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 50 µH
Tolerance ±15%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 2.8A
Shielding Shielded
DC Resistance (DCR) 200mOhm Max
Q @ Freq 18 @ 2.52MHz
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Product Number SRR1205
Other Names 118-SRR1205-500YLTR,SRR1205-500YL,118-SRR1205-500YLDKR,118-SRR1205-500YLCT
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273544-SRR1205-500YL
Ultra Librarian 3D Model Ultra Librarian SRR1205-500YL CAD Model

Description

The Bourns Inc. SRR1205-500YL is a drum core, wirewound fixed inductor with a shielding of ferrite material.

  • Inductance: 50 µH
  • Tolerance: ±15%
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT)
  • Q @ Freq: 18 @ 2.52MHz
  • Frequency Self-Resonant: 7MHz
  • DC Resistance (DCR): 200mOhm Max
  • Current Rating: 1.5A
  • Temperature Range: -40°C ~ 125°C
  • Packaging: Tape & reel
  • Height: 0.217" (5.50mm)
