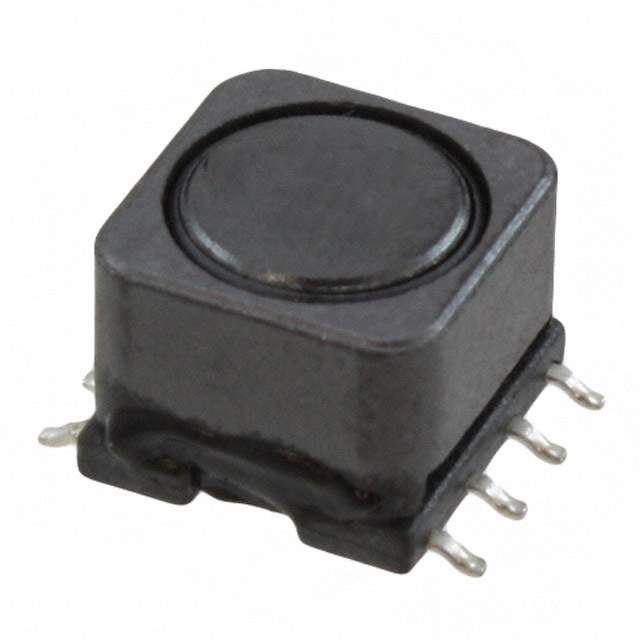

SRR0908-820ML Real Image
Same model may have multiple batches, images only for reference.

SRR0908-820ML

Part No SRR0908-820ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0908-820ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0908
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 µH
Tolerance ±20%
Current Rating (Amps) 1.05 A
Current - Saturation (Isat) 1.9A
Shielding Shielded
DC Resistance (DCR) 260mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 2.4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Dimension 0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max) 0.307" (7.80mm)
Base Product Number SRR0908
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273612-SRR0908-820ML
Ultra Librarian 3D Model Ultra Librarian SRR0908-820ML CAD Model

Description

The Bourns SRR0908 series inductor is a shielded drum core, wirewound type inductor with a ferrite core material.

  • Inductance: 82 µH
  • Tolerance: ±20%
  • Q @ Freq: 30 @ 2.52MHz
  • Frequency-self resonant: 2.4MHz
  • DC Resistance (DCR): 260mOhm Max
  • Current Rating: 1.05 A
  • Height-Seated (Max): 0.307" (7.80mm)
  • Dimension: 0.394" L x 0.374" W (10.00mm x 9.50mm)
  • Temperature Range: -40°C ~ 125°C
  • Applications: Power supplies, DC-DC converters, and filtering circuits
