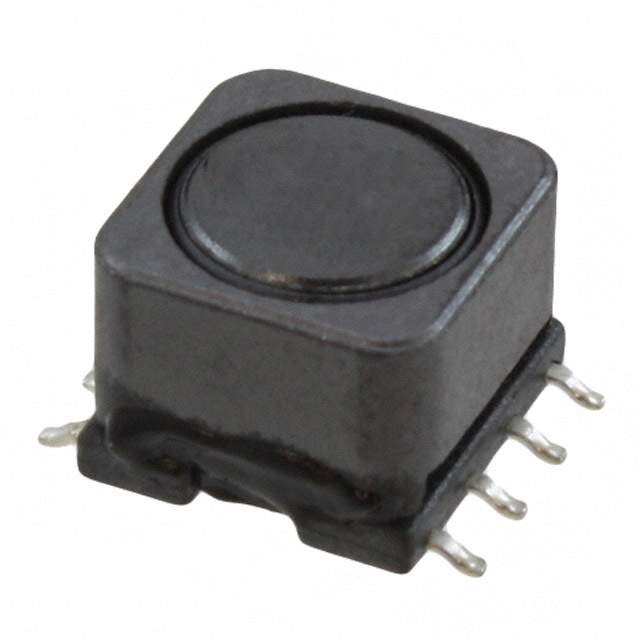

SRR0908-270ML Real Image
Same model may have multiple batches, images only for reference.

SRR0908-270ML

Part No SRR0908-270ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0908-270ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0908
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±20%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 2.9A
Shielding Shielded
DC Resistance (DCR) 90mOhm Max
Q @ Freq 45 @ 2.52MHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Dimension 0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max) 0.307" (7.80mm)
Base Product Number SRR0908
Other Names SRR0908-270ML,SRR0908-270MLTR,SRR0908-270MLDKR,SRR0908-270MLCT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273633-SRR0908-270ML
Ultra Librarian 3D Model Ultra Librarian SRR0908-270ML CAD Model

Description

The SRR0908 series from Bourns Inc. is a shielded fixed inductor designed for use in various applications such as filtering, power supplies, and DC/DC converters.

  • Type: Drum core, wirewound
  • Core Material: Ferrite
  • Inductance: 27 µH
  • Tolerance: ±20%
  • DC Resistance: 90mOhm max
  • Q @ Freq: 45 @ 2.52MHz
  • Frequency-Self-Resonant: 6MHz
  • Standard Package: 400
  • Package/Case: 8-SMD, gull-wing
  • Current Rating: 1.8 A
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.394" L x 0.374" W (10.00mm x 9.50mm)
