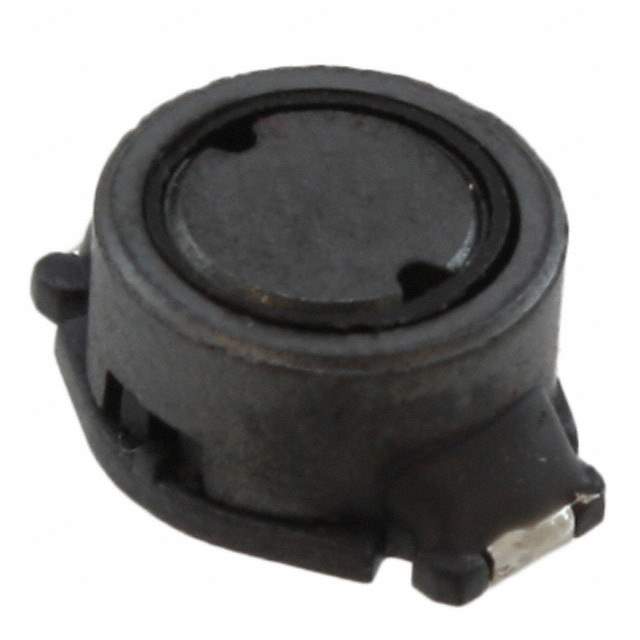

SRR0805-560K

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR0805-560K
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR0805-560K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR0805
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	56 µH
Tolerance	±10%
Current Rating (Amps)	680 mA
Current - Saturation (Isat)	950mA
Shielding	Shielded
DC Resistance (DCR)	380mOhm Max
Q @ Freq	30 @ 2.52MHz
Frequency - Self Resonant	9.5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max)	0.185" (4.70mm)
Base Product Number	SRR0805
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273684-SRR0805-560K
Ultra Librarian 3D Model	Ultra Librarian SRR0805-560K CAD Model

Alternative Products

Description

The Bourns Inc. SRR0805-560K is a drum core, wirewound inductor with a shielding feature.

Inductance: 56 µH
Tolerance: ±10%
Core Material: ferrite
Q @ Freq: 30 @ 2.52MHz
Standard Package: 1,000
Height: 0.185" (4.70mm)
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 380mOhm Max
