Same model may have multiple batches, images only for reference.

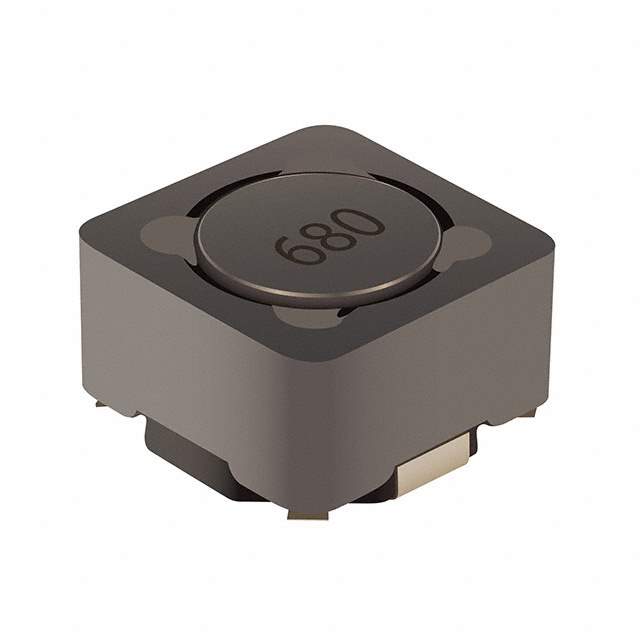

SRR0745A-820M Real Image
Same model may have multiple batches, images only for reference.

SRR0745A-820M

Part No SRR0745A-820M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0745A-820M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0745A
Package Tape & Reel
Material - Core Ferrite
Inductance 82 µH
Tolerance ±20%
Current Rating (Amps) 780 mA
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 400mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0745A
Other Names SRR0745A-820MDKR,118-SRR0745A-820MCT,SRR0745A-820MTR,SRR0745A-820MCT,SRR0745A-820MCT,SRR0745A-820MTR,SRR0745A-820MDKR,118-SRR0745A-820MTR,118-SRR0745A-820MDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273715-SRR0745A-820M
Ultra Librarian 3D Model Ultra Librarian SRR0745A-820M CAD Model

Description

The Bourns Inc. SRR0745A-820M is a shielded fixed inductor that is perfect for use in a wide range of electronic applications.

  • Inductance: 82 µH
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 125°C
  • Maximum DC Resistance: 400 mOhm
  • Package: Nonstandard
  • Mounting: Surface mount technology
  • Rating: AEC-Q200 rated
  • Height: 0.185 inches
  • Supply and Demand: Balance of supply and demand
  • REACH: Unaffected by REACH regulations
  • Package Size: 1000
