Same model may have multiple batches, images only for reference.

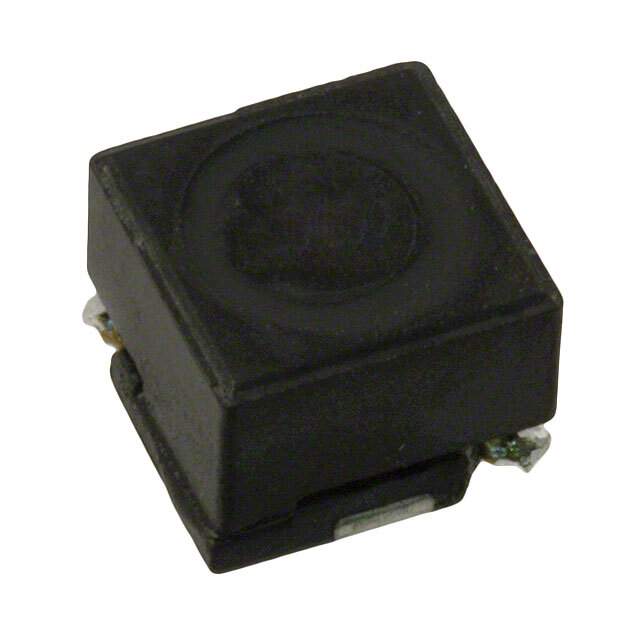

SRR0604-2R2ML Real Image
Same model may have multiple batches, images only for reference.

SRR0604-2R2ML

Part No SRR0604-2R2ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0604-2R2ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0604
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 32mOhm Max
Q @ Freq 21 @ 7.96MHz
Frequency - Self Resonant 100MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0604
Other Names SRR0604-2R2MLTR,SRR0604-2R2MLDKR,SRR0604-2R2ML,SRR0604-2R2MLCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273757-SRR0604-2R2ML
Ultra Librarian 3D Model Ultra Librarian SRR0604-2R2ML CAD Model

Description

The SRR0604 series inductor is a drum core, wirewound inductor with a shielding feature.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • DC Resistance: 32mOhm Max
  • Current Rating: 2.5Amps
  • Temperature Range: -40°C to 125°C
  • Q @ Freq: 21 @ 7.96MHz
  • Package: nonstandard, corner terminal package
  • Packaging: tape and reel packaged
  • Mounting: SMD (SMT) technology
  • Dimension: 0.256" L x 0.256" W (6.50mm x 6.50mm)
