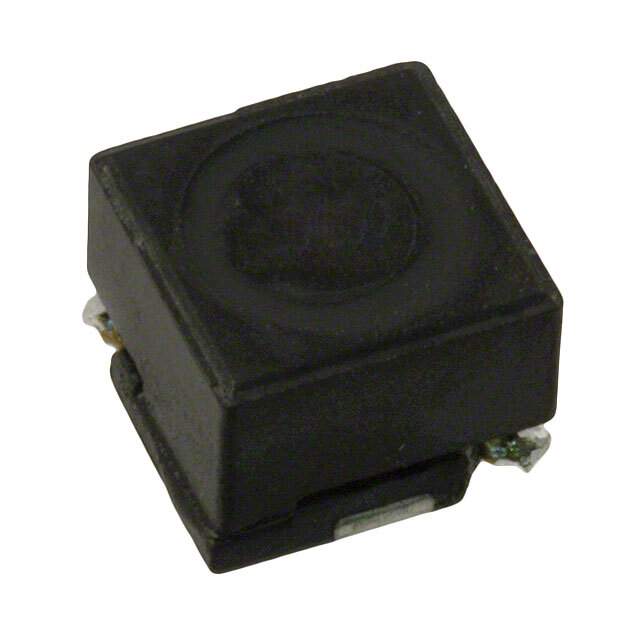

SRR0604-1R5ML Real Image
Same model may have multiple batches, images only for reference.

SRR0604-1R5ML

Part No SRR0604-1R5ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0604-1R5ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0604
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 3.95A
Shielding Shielded
DC Resistance (DCR) 28mOhm Max
Q @ Freq 23 @ 7.96MHz
Frequency - Self Resonant 110MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0604
Other Names SRR0604-1R5MLTR,-SRR0604-1R5MLTR,SRR06041R5ML,-SRR0604-1R5MLCT,-SRR0604-1R5ML,SRR0604-1R5MLCT,SRR0604-1R5MLDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273758-SRR0604-1R5ML
Ultra Librarian 3D Model Ultra Librarian SRR0604-1R5ML CAD Model

Description

Bourns Inc. presents the SRR0604-1R5ML, a drum core, wirewound inductor that is part of the SRR0604 series.

  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Package: tape & reel
  • Shielded: Yes
  • Maximum Height: 0.189" (4.80mm)
  • Core Material: ferrite
  • DC Resistance (DCR): 28mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • Package / Case: nonstandard, corner terminals
  • Mounting: surface mount device (SMD) (SMT) mounted
  • Q @ Freq: 23 @ 7.96MHz
  • Frequency Self-Resonant: 110MHz
  • Inductance Frequency - Test: 1 kHz
  • Current Rating (amps): 2.8 A
  • Current Saturation (Isat): 3.95A
  • Status: obsolete
  • Standard Package: 1,000
