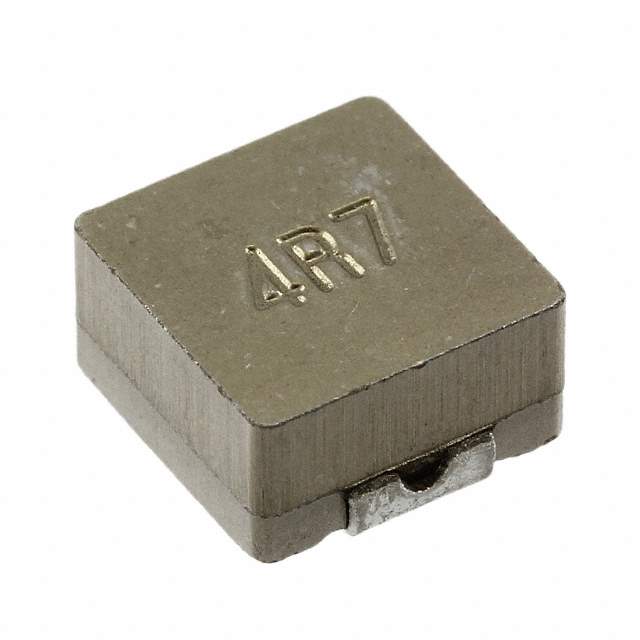

Same model may have multiple batches, images only for reference.

SRP6540-R82M

Name: SRP6540-R82M
Brand: Bourns Inc.
SKU: 1273814
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP6540-R82M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP6540-R82M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP6540
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	820 nH
Tolerance	±20%
Current Rating (Amps)	15 A
Current - Saturation (Isat)	15A
Shielding	Shielded
DC Resistance (DCR)	5.5mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.283" L x 0.256" W (7.20mm x 6.50mm)
Height - Seated (Max)	0.157" (4.00mm)
Base Product Number	SRP6540
Other Names	SRP6540-R82MDKR,SRP6540-R82MTR,SRP6540-R82MCT
Standard Package	1,200
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273814-SRP6540-R82M
Ultra Librarian 3D Model	Ultra Librarian SRP6540-R82M CAD Model

Alternative Products

Description

The Bourns Inc. SRP6540-R82M is a drum core, wirewound inductor with an inductance of 820 nH and a tolerance of ±20%.

Shielded: Yes
Packaging: Tape and reel
Current Rating: 15 A
DC Resistance (DCR): 5.5mOhm Max
Mounting: Surface-mounted
Temperature Range: -55°C to 125°C
Category: Inductors, Coils, Chokes
