Same model may have multiple batches, images only for reference.

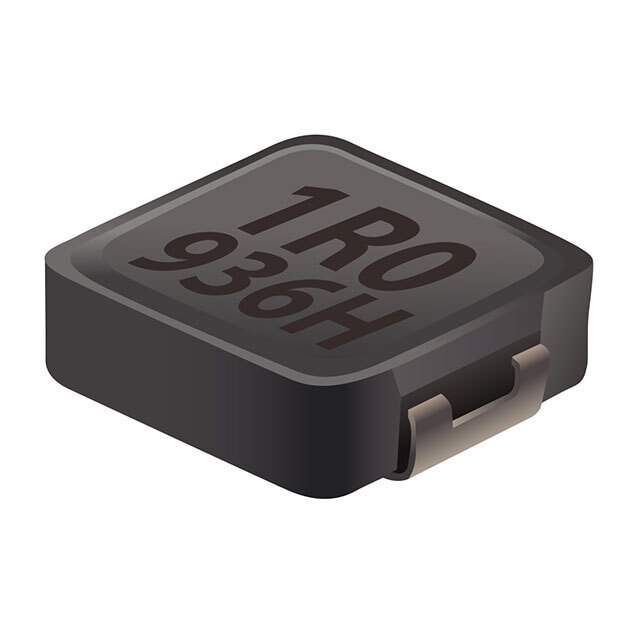

SRP5020C-6R8M Real Image
Same model may have multiple batches, images only for reference.

SRP5020C-6R8M

Part No SRP5020C-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP5020C-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP5020C
Package Tape & Reel
Material - Core Metal
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 150mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.079" (2.00mm)
Other Names 118-SRP5020C-6R8MCT,118-SRP5020C-6R8MTR,118-SRP5020C-6R8MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273891-SRP5020C-6R8M
Ultra Librarian 3D Model Ultra Librarian SRP5020C-6R8M CAD Model

Description

The SRP5020C-6R8M is a shielded fixed inductor from Bourns Inc.

  • Inductance: 6.8 µH
  • Tolerance: ±20%
  • Packaging: Tape and Reel
  • Height: 0.079" (2.00mm)
  • Core Material: Metal
  • Q @ Freq: 20 @ 100kHz
  • Frequency - Self Resonant: 25MHz
  • Package: Non-standard
  • Dimension: 0.224" L x 0.205" W (5.70mm x 5.20mm)
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
