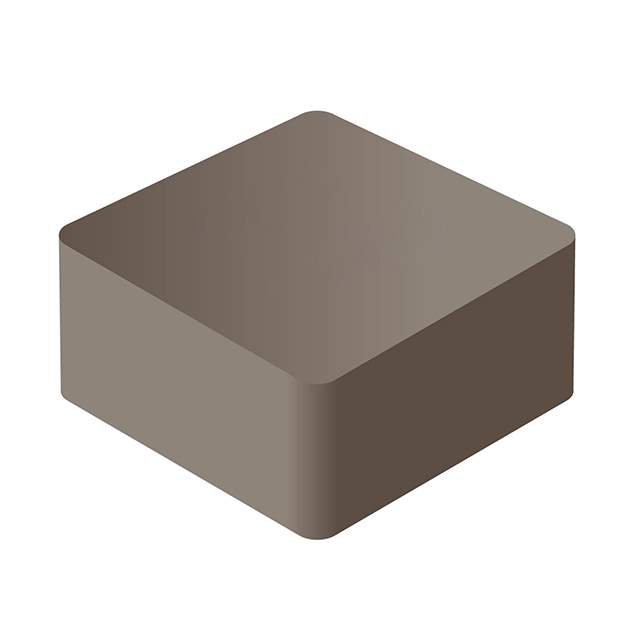

Same model may have multiple batches, images only for reference.

SRP4030FA-R90M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP4030FA-R90M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP4030FA-R90M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP4030FA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	900 nH
Tolerance	±20%
Current Rating (Amps)	11.2 A
Current - Saturation (Isat)	7A
Shielding	Shielded
DC Resistance (DCR)	10.01mOhm Max
Q @ Freq	10 @ 100kHz
Frequency - Self Resonant	60MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRP4030FA
Other Names	SRP4030FA-R90MCT,SRP4030FA-R90MDKR,SRP4030FA-R90MTR
Standard Package	2,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1273915-SRP4030FA-R90M
Ultra Librarian 3D Model	Ultra Librarian SRP4030FA-R90M CAD Model

Alternative Products

Description

The Bourns Inc. SRP4030FA-R90M is a fixed inductor that is designed with a drum core and wirewound type.

Type: Drum core, Wirewound
Shielding: Shielded
Standard Package: 2,000
Inductance: 900 nH
Q @ Freq: 10 @ 100kHz
Core Material: Iron powder
DC Resistance (DCR): 10.01mOhm max
AEC-Q200: Rated
