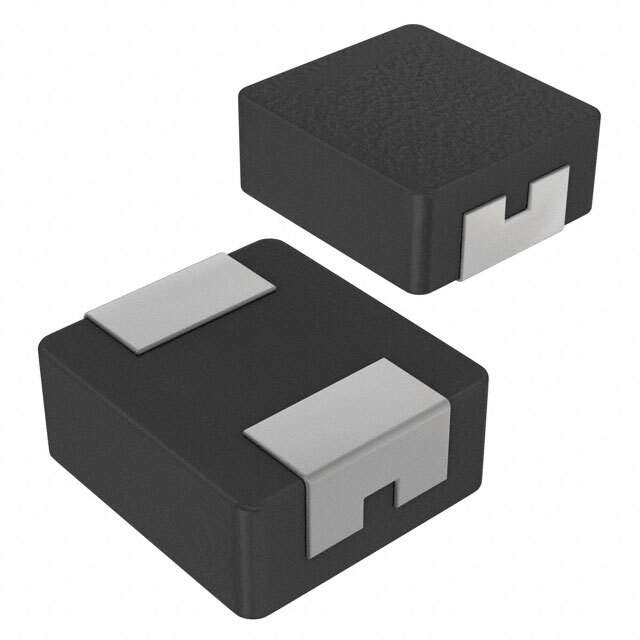

Same model may have multiple batches, images only for reference.

SRP4020TA-R10Y

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP4020TA-R10Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP4020TA-R10Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP4020TA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	100 nH
Tolerance	±30%
Current Rating (Amps)	12 A
Current - Saturation (Isat)	35A
Shielding	Shielded
DC Resistance (DCR)	4mOhm Max
Q @ Freq	5 @ 100kHz
Frequency - Self Resonant	300MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD
Supplier Device Package	2-SMD
Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRP4020TA
Other Names	SRP4020TA-R10YCT,SRP4020TA-R10YTR,SRP4020TA-R10YDKR
Standard Package	3,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273919-SRP4020TA-R10Y
Ultra Librarian 3D Model	Ultra Librarian SRP4020TA-R10Y CAD Model

Alternative Products

Description

The SRP4020TA-R10Y is a shielded fixed inductor from Bourns Inc. that is perfect for use in electronic circuits that require inductance.

Inductance: 100 nH
Tolerance: ±30%
Core Material: Carbonyl powder
DC Resistance: 4 mOhm max
Frequency Self-Resonant: 300MHz
Q @ Freq: 5 @ 100kHz
Package/Case Dimension: 0.175" L x 0.160" W (4.45mm x 4.06mm)
Temperature Range: -40°C to 150°C
Packaging: Tape and Reel
Standard Package: 3,000
