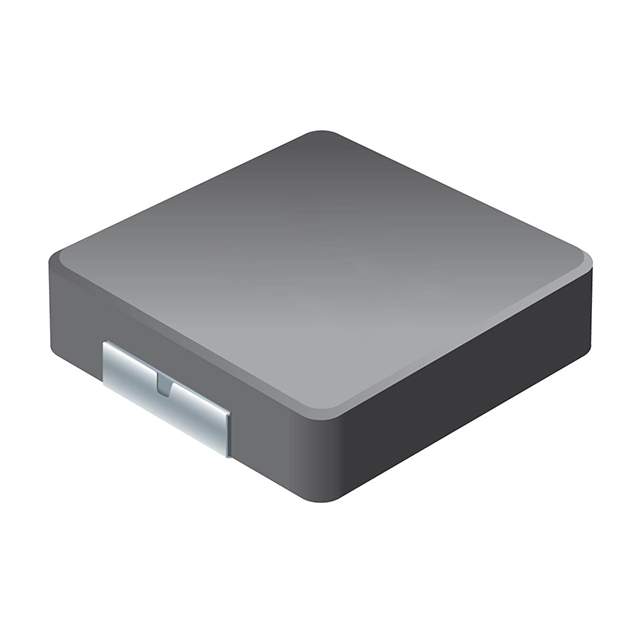

SRP3020TA-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRP3020TA-4R7M

Part No SRP3020TA-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3020TA-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 3A
Shielding Shielded
DC Resistance (DCR) 200mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 34MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP3020TA
Other Names SRP3020TA-4R7MCT,SRP3020TA-4R7MTR,SRP3020TA-4R7MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273946-SRP3020TA-4R7M
Ultra Librarian 3D Model Ultra Librarian SRP3020TA-4R7M CAD Model

Description

The SRP3020TA-4R7M is a fixed inductor manufactured by Bourns Inc.

  • Series: SRP3020TA
  • Type: drum core, wirewound
  • Package: tape and reel
  • Shielding: Shielded
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance: 200mOhm Max
  • Current Rating: 2.6A
  • AEC-Q200 Rated: Yes
  • Operating Temperature: -40°C to 150°C
  • HTSUS code: 8504.50.4000
