Same model may have multiple batches, images only for reference.

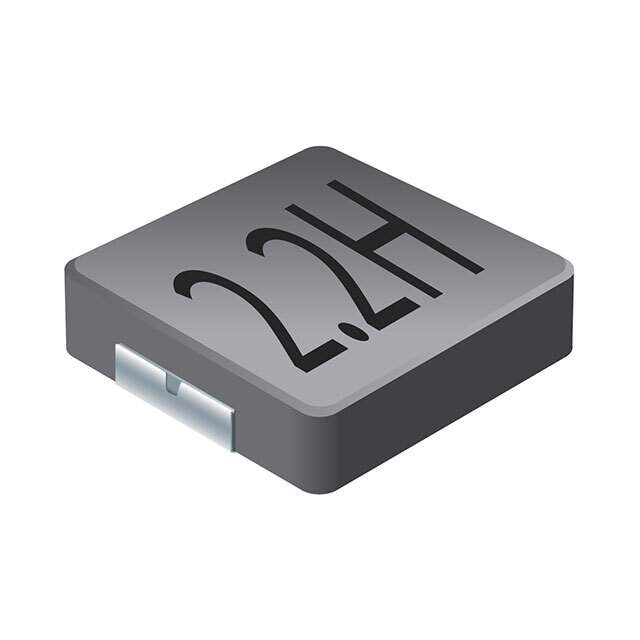

SRP3020C-8R2M Real Image
Same model may have multiple batches, images only for reference.

SRP3020C-8R2M

Part No SRP3020C-8R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3020C-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3020C
Package Tape & Reel
Material - Core Metal
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 390mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 27MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.079" (2.00mm)
Other Names 118-SRP3020C-8R2MDKR,118-SRP3020C-8R2MTR,118-SRP3020C-8R2MCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273954-SRP3020C-8R2M
Ultra Librarian 3D Model Ultra Librarian SRP3020C-8R2M CAD Model

Description

The SRP3020C-8R2M is a shielded inductor from Bourns Inc.

  • Inductance: 8.2 µH
  • Tolerance: ±20%
  • Current: 1.4 A
  • DC Resistance: 390 mOhm maximum
  • Core Material: Metal
  • Self-Resonant Frequency: 27 MHz
  • Packaging: Tape and Reel
  • Height: 0.079 inches (2.00 mm)
  • Temperature Range: -40°C to 125°C
