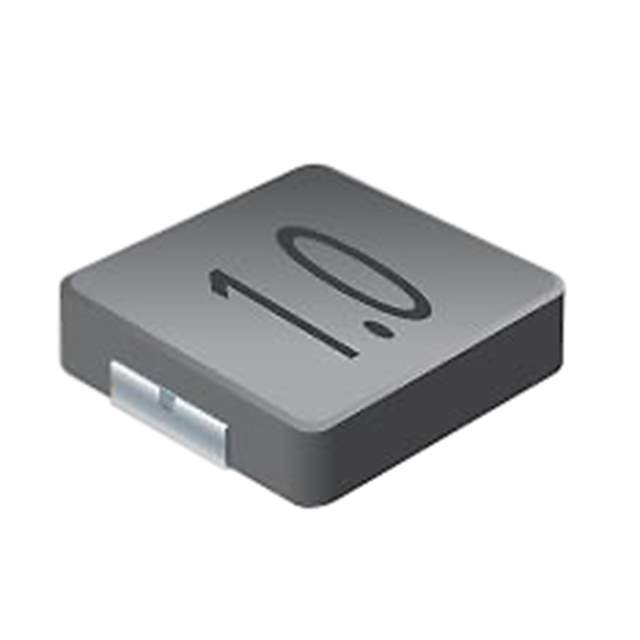

SRP3012TA-R22M Real Image
Same model may have multiple batches, images only for reference.

SRP3012TA-R22M

Part No SRP3012TA-R22M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3012TA-R22M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3012TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 220 nH
Tolerance ±20%
Current Rating (Amps) 6.5 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 17mOhm Max
Frequency - Self Resonant 170MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP3012TA
Other Names SRP3012TA-R22MTR,SRP3012TA-R22MDKR,SRP3012TA-R22MCT
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273974-SRP3012TA-R22M
Ultra Librarian 3D Model Ultra Librarian SRP3012TA-R22M CAD Model

Description

The SRP3012TA-R22M from Bourns Inc. is a fixed inductor that comes with a drum core and wirewound type.

  • Packaging: Tape and Reel
  • Shielded: Yes
  • Tolerance: ±20%
  • Inductance: 220 nH
  • Current Rating: Up to 6.5 A
  • DC Resistance (DCR): Up to 17mOhm Max
  • Temperature Range: -40°C to 150°C
  • Rating: AEC-Q200
  • Core Material: Carbonyl powder material
  • Frequency of Self-Resonant: 170MHz
  • Size: 0.138" L x 0.126" W (3.50mm x 3.20mm)
