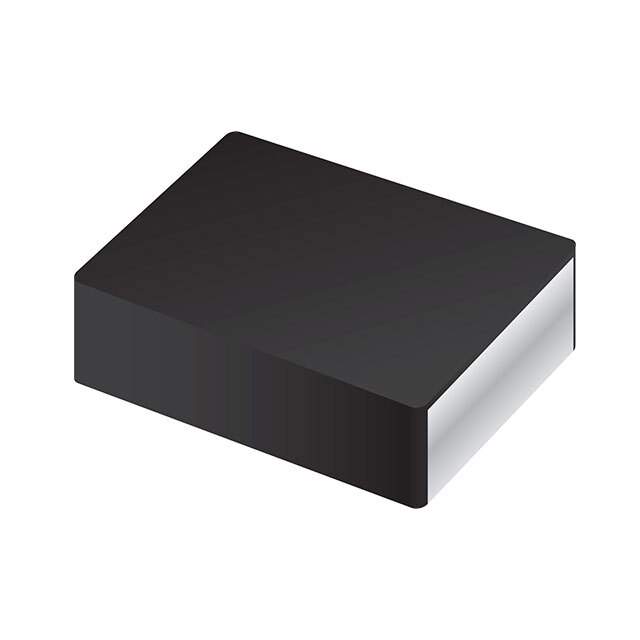

SRP2512A-R47M Real Image
Same model may have multiple batches, images only for reference.

SRP2512A-R47M

Part No SRP2512A-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP2512A-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP2512A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 4.6 A
Current - Saturation (Isat) 5.3A
Shielding Shielded
DC Resistance (DCR) 25mOhm Max
Q @ Freq 39 @ 1MHz
Frequency - Self Resonant 129MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP2512A
Other Names SRP2512A-R47MTR,SRP2512A-R47MCT,SRP2512A-R47MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273990-SRP2512A-R47M
Ultra Librarian 3D Model Ultra Librarian SRP2512A-R47M CAD Model

Description

The Bourns Inc. SRP2512A-R47M is a fixed inductor that is part of the SRP2512A series.

  • Core Type: Drum core
  • Type: Wirewound
  • Shielding: Yes
  • Inductance: 470nH
  • Tolerance: ±20%
  • Packaging: Tape & Reel
  • Standard Package: 3,000
  • Mounting: Surface Mount Technology (SMT)
  • Height: 0.047" (1.20mm)
  • DC Resistance (DCR): 25mOhm Max
  • Core Material: Iron powder core
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • Current Rating: 4.6Amps
  • HTSUS Code: 8504.50.8000
