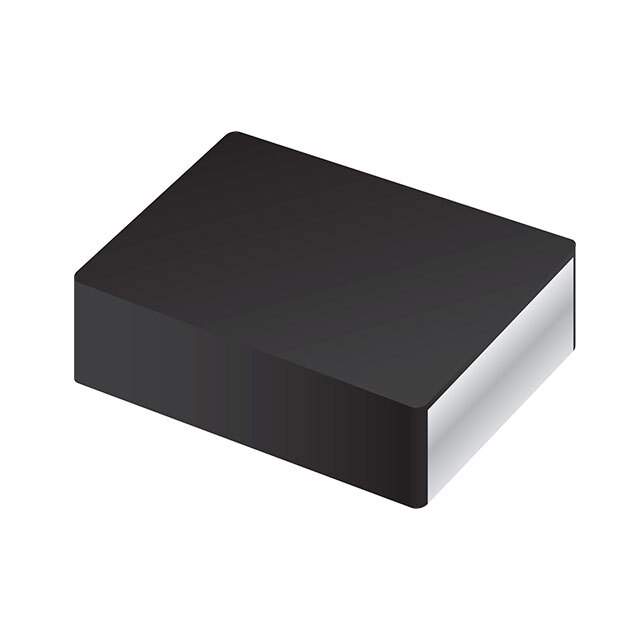

SRP2512A-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRP2512A-4R7M

Part No SRP2512A-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP2512A-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP2512A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.55 A
Current - Saturation (Isat) 1.9A
Shielding Shielded
DC Resistance (DCR) 235mOhm Max
Q @ Freq 39 @ 1MHz
Frequency - Self Resonant 37MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP2512A
Other Names SRP2512A-4R7MCT,SRP2512A-4R7MTR,SRP2512A-4R7MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273991-SRP2512A-4R7M
Ultra Librarian 3D Model Ultra Librarian SRP2512A-4R7M CAD Model

Description

The SRP2512A series is a drum core, wirewound type of fixed inductor that is shielded with an inductance of 4.7 µH and a tolerance of ±20%.

  • Height Seated: 0.047" (1.20mm)
  • DC Resistance (DCR): 235mOhm Max
  • Package: Tape and reel
  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • Material Core: Iron powder
  • Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Current Rating: 1.55A
  • Inductance Frequency Test: 1 MHz
