Same model may have multiple batches, images only for reference.

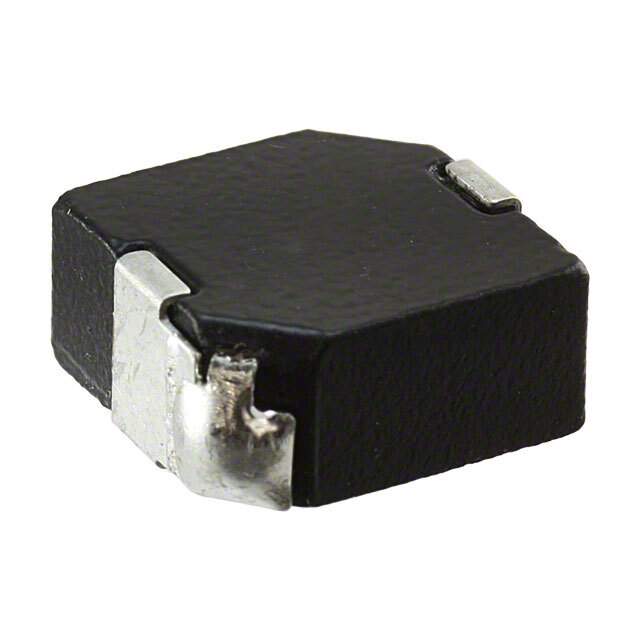

SRP1270-R47M Real Image
Same model may have multiple batches, images only for reference.

SRP1270-R47M

Part No SRP1270-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1270-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1270
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Iron
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 41 A
Current - Saturation (Isat) 65A
Shielding Shielded
DC Resistance (DCR) 1.2mOhm Max
Frequency - Self Resonant 85MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.539" L x 0.539" W (13.70mm x 13.70mm)
Height - Seated (Max) 0.276" (7.00mm)
Base Product Number SRP1270
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274021-SRP1270-R47M
Ultra Librarian 3D Model Ultra Librarian SRP1270-R47M CAD Model

Description

The SRP1270-R47M is a fixed inductor manufactured by Bourns Inc.

  • Applications: Power supplies, lighting systems, and motor control
  • Inductance: 470nH
  • Current Rating: 41A
  • Operating Temperature: -55°C to +125°C
  • DC Resistance: 1.2mOhm
  • Construction: Shielded
  • Package: Non-standard
