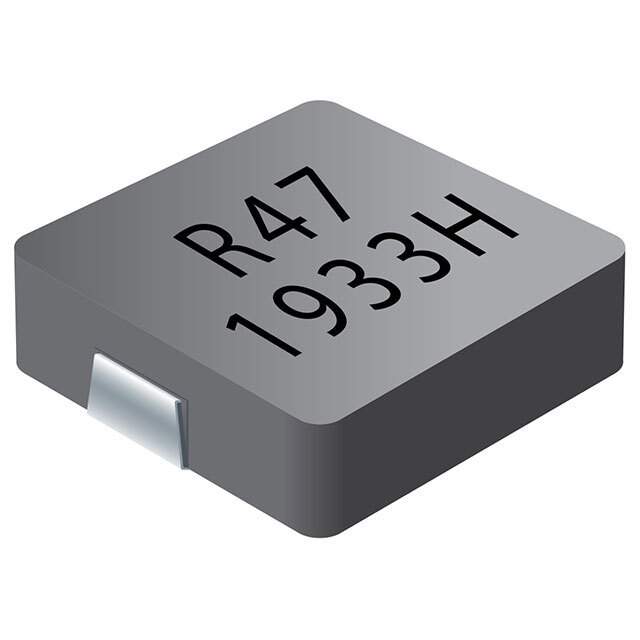

Same model may have multiple batches, images only for reference.

SRP1265C-2R2M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1265C-2R2M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1265C-2R2M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1265C
Package	Tape & Reel
Material - Core	Metal
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	25 A
Current - Saturation (Isat)	40A
Shielding	Shielded
DC Resistance (DCR)	4.8mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	23MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.531" L x 0.496" W (13.50mm x 12.60mm)
Height - Seated (Max)	0.256" (6.50mm)
Other Names	118-SRP1265C-2R2MTR,118-SRP1265C-2R2MDKR,118-SRP1265C-2R2MCT
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1274036-SRP1265C-2R2M
Ultra Librarian 3D Model	Ultra Librarian SRP1265C-2R2M CAD Model

Alternative Products

Description

Bourns Inc. SRP1265C-2R2M is a fixed inductor with an inductance of 2.2 µH and a current rating of 25A.

Mounting: SMD (SMT)
Shielded: Yes
Height: 0.256" (6.50mm)
Tolerance: ±20%
Material Core: Metal
Q @ Freq: 20 @ 100kHz
Frequency Self-Resonant: 23MHz
Package/Case: Non-standard
DC Resistance: 4.8mOhm Max
Temperature Range: -40°C ~ 125°C
Package: Tape and reel
