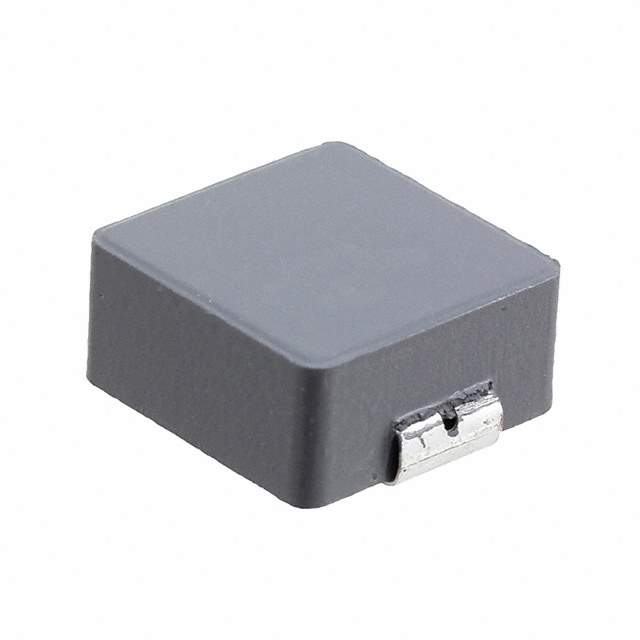

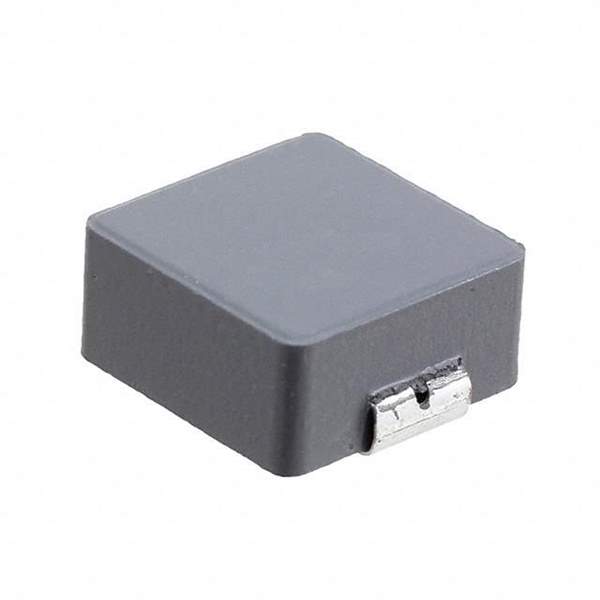

Same model may have multiple batches, images only for reference.

SRP1265A-R82M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1265A-R82M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1265A-R82M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1265A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	820 nH
Tolerance	±20%
Current Rating (Amps)	33 A
Current - Saturation (Isat)	50A
Shielding	Shielded
DC Resistance (DCR)	1.9mOhm Max
Q @ Freq	15 @ 100kHz
Frequency - Self Resonant	50MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max)	0.252" (6.40mm)
Base Product Number	SRP1265A
Other Names	SRP1265A-R82MCT,SRP1265A-R82MTR,SRP1265A-R82MDKR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274041-SRP1265A-R82M
Ultra Librarian 3D Model	Ultra Librarian SRP1265A-R82M CAD Model

Alternative Products

Description

The Bourns Inc. SRP1265A-R82M is a fixed inductor designed for use in various applications.

Inductance: 820 nH
Shielding: Drum core, wirewound
Mounting: SMD (SMT)
Packaging: Tape & reel
Rated: AEC-Q200
Q @ Freq: 15 @ 100kHz
Frequency of Self-Resonant: 50MHz
DC Resistance (DCR): 1.9mOhm Max
Current Rating: 33 A
Operating Temperature: -40°C to 150°C
Package: Nonstandard
Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
Supply/Demand: Balance
