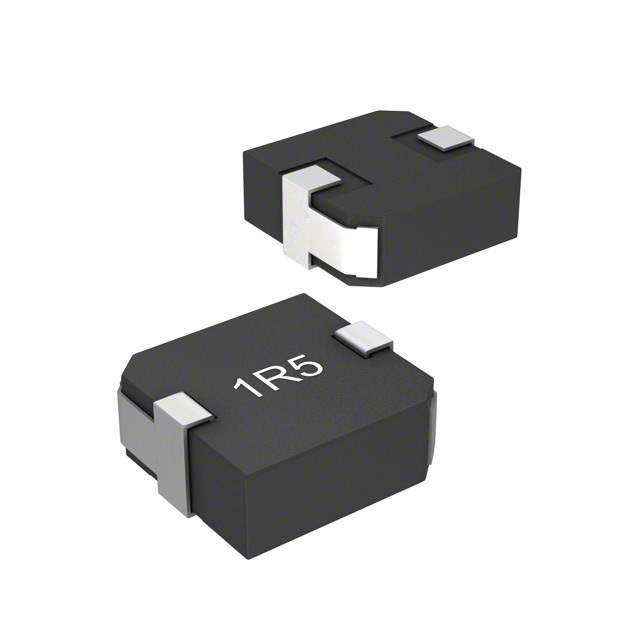

SRP1250-7R8M Real Image
Same model may have multiple batches, images only for reference.

SRP1250-7R8M

Part No SRP1250-7R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1250-7R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1250
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron
Inductance 7.8 µH
Tolerance ±20%
Current Rating (Amps) 10 A
Current - Saturation (Isat) 18A
Shielding Shielded
DC Resistance (DCR) 20.5mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max) 0.232" (5.90mm)
Base Product Number SRP1250
Other Names SRP12507R8M,SRP1250-7R8M,SRP1250-7R8MCT,SRP1250-7R8MTR,SRP1250-7R8MDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274053-SRP1250-7R8M
Ultra Librarian 3D Model Ultra Librarian SRP1250-7R8M CAD Model

Description

The Bourns Inc. electronic component with the Win Source Part Number 1274053-SRP1250-7R8M is a high-quality inductor with a drum core, wirewound type.

  • Package: Tape and Reel
  • Shielding: Shielding Feature
  • Inductance: 7.8 μH
  • Tolerance: ±20%
  • Material-Core: Iron
  • DC Resistance (DCR): 20.5mOhm Max
  • Temperature Range: -55°C ~ 150°C
  • Dimension: 0.547" L x 0.531" W (13.90mm x 13.50mm)
