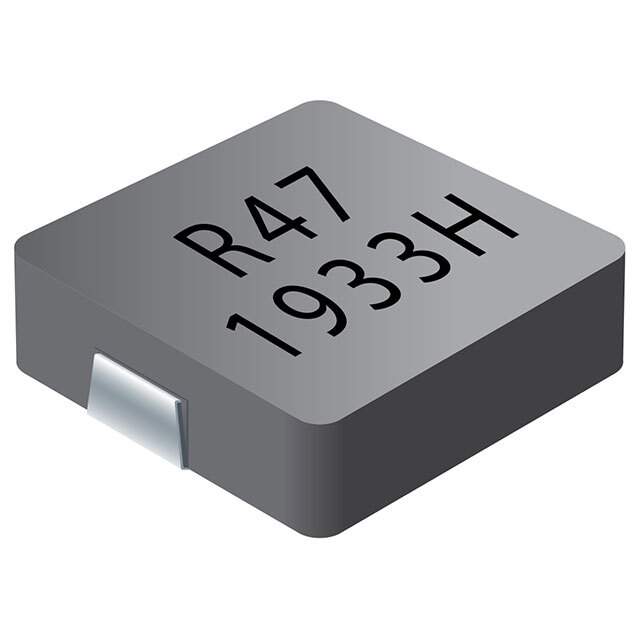

SRP1245C-R15Y Real Image
Same model may have multiple batches, images only for reference.

SRP1245C-R15Y

Part No SRP1245C-R15Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1245C-R15Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1245C
Package Tape & Reel
Material - Core Metal
Inductance 150 nH
Tolerance ±30%
Current Rating (Amps) 55 A
Current - Saturation (Isat) 100A
Shielding Shielded
DC Resistance (DCR) 0.41mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 147MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.496" W (13.50mm x 12.60mm)
Height - Seated (Max) 0.197" (5.00mm)
Other Names 118-SRP1245C-R15YCT,118-SRP1245C-R15YDKR,118-SRP1245C-R15YTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274066-SRP1245C-R15Y
Ultra Librarian 3D Model Ultra Librarian SRP1245C-R15Y CAD Model

Description

The Bourns Inc. is a current rating (amps) product with Win Source Part Number 1274066-SRP1245C-R15Y.

  • Type: Fixed Inductor
  • Shielding: Shielded
  • Inductance: 150 nH
  • Tolerance: ±30%
  • Q @ Freq: 15 @ 100kHz
  • Frequency - Self-Resonant: 147MHz
  • DC Resistance (DCR): 0.41mOhm Max
  • Temperature Range: -40°C to 125°C
  • MSL Level: 1 (Unlimited)
  • REACH: REACH Unaffected
  • ECCN: EAR99
  • Manufacturer: Bourns Inc.
  • Other Names: 118-SRP1245C-R15YCT,118-SRP1245C-R15YDKR,118-SRP1245C-R15YTR
