Same model may have multiple batches, images only for reference.

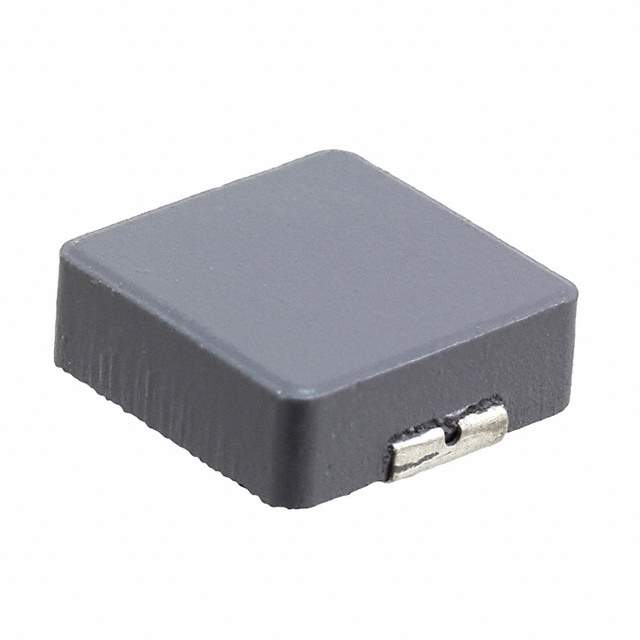

SRP1245A-1R2M Real Image
Same model may have multiple batches, images only for reference.

SRP1245A-1R2M

Part No SRP1245A-1R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1245A-1R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1245A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 1.2 µH
Tolerance ±20%
Current Rating (Amps) 28 A
Current - Saturation (Isat) 49A
Shielding Shielded
DC Resistance (DCR) 3mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 35MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SRP1245A
Other Names 118-SRP1245A-1R2MTR,118-SRP1245A-1R2MDKR,SRP1245A-1R2M,118-SRP1245A-1R2MCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274079-SRP1245A-1R2M
Ultra Librarian 3D Model Ultra Librarian SRP1245A-1R2M CAD Model

Description

The Bourns Inc. 1274079-SRP1245A-1R2M is a fixed inductor that is part of the SRP1245A series.

  • Shielding: Shielded
  • Inductance: 1.2μH
  • Tolerance: ±20%
  • Ratings: AEC-Q200
  • Q @ Freq: 20 @ 100kHz
  • Frequency - Self-Resonant: 35MHz
  • DC Resistance (DCR): 3mOhm Max
  • Package/Case Size: Non-standard
  • Current Rating (amps): 28A
  • Inductance Frequency - Test: 100kHz
  • Temperature Range: -40°C to 150°C
  • Package: Tape and reel
  • REACH: Unaffected
