Same model may have multiple batches, images only for reference.

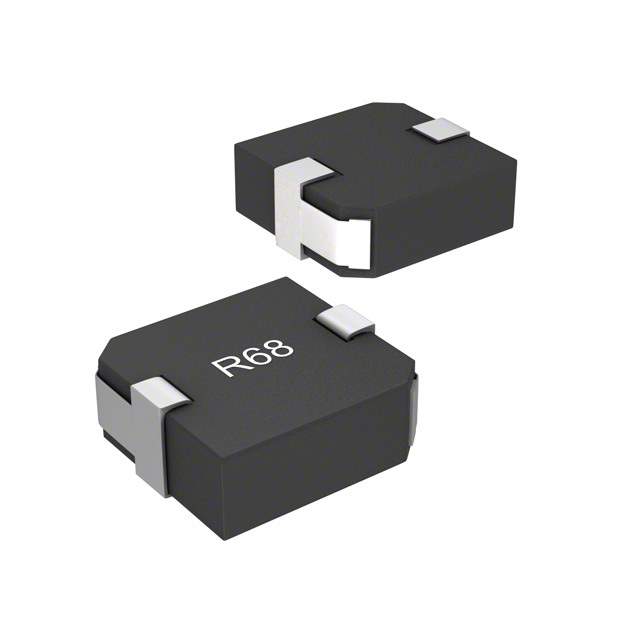

SRP1040-R75M Real Image
Same model may have multiple batches, images only for reference.

SRP1040-R75M

Part No SRP1040-R75M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1040-R75M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040
Package Tape & Reel (TR)
Product Status Obsolete
Material - Core Iron
Inductance 750 nH
Tolerance ±20%
Current Rating (Amps) 22 A
Current - Saturation (Isat) 28A
Shielding Shielded
DC Resistance (DCR) 2.5mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.465" L x 0.413" W (11.80mm x 10.50mm)
Height - Seated (Max) 0.165" (4.20mm)
Base Product Number SRP1040
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274133-SRP1040-R75M
Ultra Librarian 3D Model Ultra Librarian SRP1040-R75M CAD Model

Description

This electronic component has a Win Source Part Number of 1274133-SRP1040-R75M and is part of the Inductors, Coils, Chokes category.

  • Series: SRP1040
  • Shielded: Shielded
  • Inductance: 750 nH
  • Tolerance: ±20%
  • Material: Iron
  • DC Resistance (DCR): 2.5mOhm Max
  • Supplier Device Package: -
  • ECCN: EAR99
  • Current Rating: 22 A
  • Inductance Frequency - Test: 100 kHz
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
  • Manufacturer: Bourns Inc.
  • Status: Obsolete
