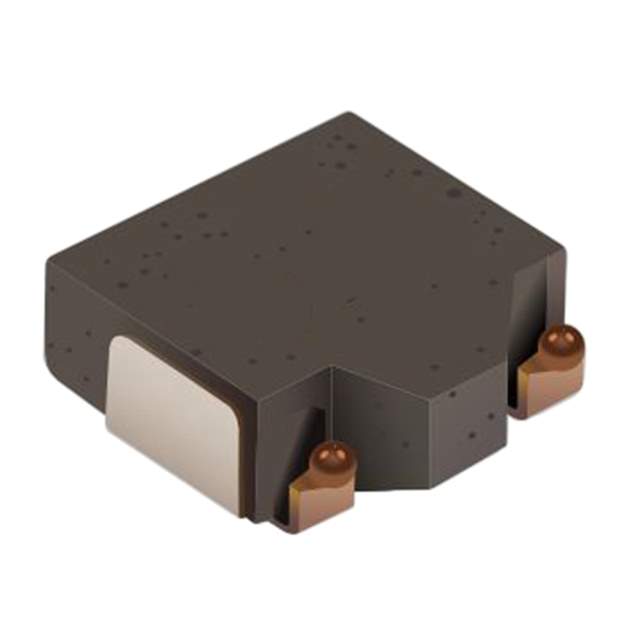

SRP0412-R68K Real Image
Same model may have multiple batches, images only for reference.

SRP0412-R68K

Part No SRP0412-R68K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0412
Package Tape & Reel
Material - Core Metal
Inductance 680 nH
Tolerance ±10%
Current Rating (Amps) 5.6 A
Current - Saturation (Isat) 10.5A
Shielding Shielded
DC Resistance (DCR) 25mOhm Max
Q @ Freq 20 @ 25.2MHz
Frequency - Self Resonant 74MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max) 0.047" (1.20mm)
Other Names 118-SRP0412-R68KCT,118-SRP0412-R68KTR,118-SRP0412-R68KDKR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274222-SRP0412-R68K
Ultra Librarian 3D Model Ultra Librarian SRP0412-R68K CAD Model

Description

The Bourns Inc. SRP0412-R68K is a shielded fixed inductor.

  • Inductance: 680 nH
  • Tolerance: ±10%
  • DC Resistance (DCR): 25mOhm max
  • Q @ Freq: 20 @ 25.2MHz
  • Frequency - Self-Resonant: 74MHz
  • Mounting: SMD
  • Package/Case: Non-standard
  • Current Rating: 5.6 A
  • Height - Seated (max): 0.047" (1.20mm)
  • Operating Temperature Range: -40°C to 125°C
