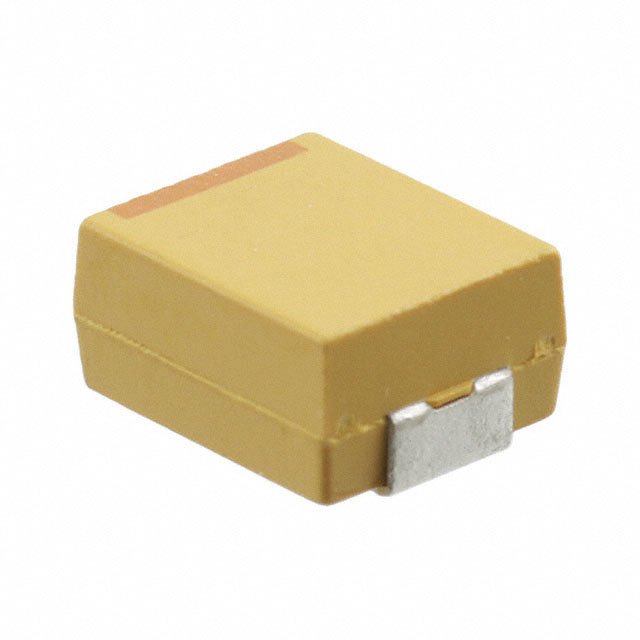

The TPSV687K006R0250 is a surface mount solid electrolytic capacitor manufactured by AVX Corporation. It's a member of the TPS series, recognized for its reliability and stable electrical characteristics in various electronic applications. The molded case is designed for automated placement.

Applications

• Power management in portable devices
• Filtering in industrial electronics
• DC-DC conversion circuits
• Bypass capacitance in microcontrollers
• Storage in energy harvesting applications

Features

• Surface mount technology (SMT)
• Molded case for robustness
• Solid electrolytic construction
• Low ESR (Equivalent Series Resistance)
• RoHS compliant for environmental responsibility

Benefits

• Increased efficiency in power circuits due to low ESR.
• Consistent performance over a broad temperature spectrum.
• Long-term reliability in harsh operating conditions.
• Smaller footprint allows for high-density circuit boards.
• Minimized voltage drops and ripple in power supplies.

Technical Specifications

The TPSV687K006R0250 has a capacitance of 680µF with a tolerance of ±10%. Its voltage rating is 6.3V DC. The equivalent series resistance (ESR) is 0.250 Ohms. It is designed to operate within a temperature range of -55°C to +105°C. Dimensions are case-size specific; refer to the datasheet for exact measurements. This capacitor uses tantalum with polymer cathode material ensuring it fails safely under extreme conditions.
