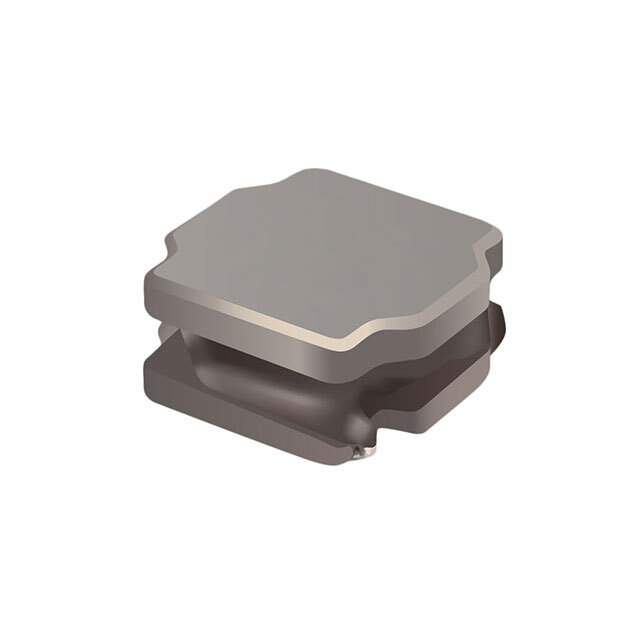

SRN8040TA-1R0Y Real Image
Same model may have multiple batches, images only for reference.

SRN8040TA-1R0Y

Part No SRN8040TA-1R0Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN8040TA-1R0Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN8040TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±30%
Current Rating (Amps) 8.5 A
Current - Saturation (Isat) 13.8A
Shielding Semi-Shielded
DC Resistance (DCR) 8.2mOhm
Q @ Freq 15 @ 1MHz
Frequency - Self Resonant 85MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRN8040TA
Other Names SRN8040TA-1R0YCT,SRN8040TA-1R0YDKR,SRN8040TA-1R0YTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274265-SRN8040TA-1R0Y
Ultra Librarian 3D Model Ultra Librarian SRN8040TA-1R0Y CAD Model

Description

The SRN8040TA-1R0Y is a semi-shielded fixed inductor from Bourns Inc. with an inductance of 1 µH and a tolerance of ±30%.

  • DC Resistance: 8.2mOhm
  • Current Rating: 8.5 A
  • Core Material: Ferrite
  • Q @ Freq: 15 @ 1MHz
  • Frequency Self-Resonant: 85MHz
  • Package: Tape and reel
  • Height Seated (Max): 0.177" (4.50mm)
  • Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Operating Temperature Range: -55°C ~ 125°C
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited) compliant
