Same model may have multiple batches, images only for reference.

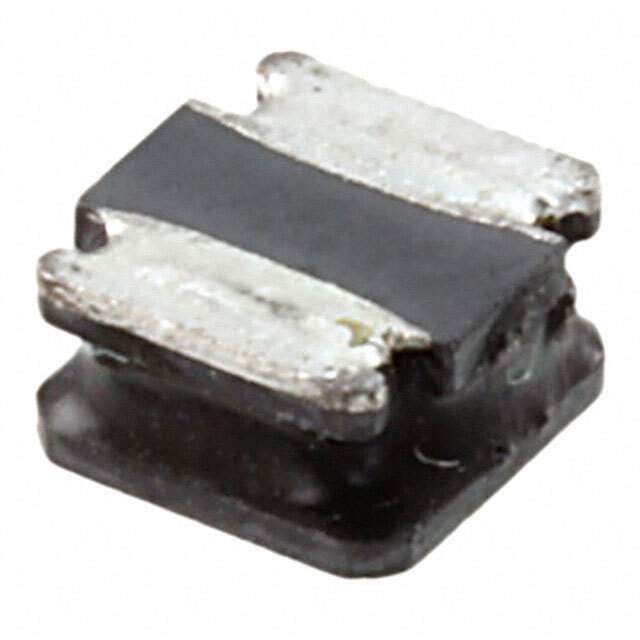

SRN4026-100M Real Image
Same model may have multiple batches, images only for reference.

SRN4026-100M

Part No SRN4026-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4026-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4026
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 970 mA
Current - Saturation (Isat) 970mA
Shielding Semi-Shielded
DC Resistance (DCR) 102mOhm Max
Q @ Freq 11 @ 7.96MHz
Frequency - Self Resonant 26MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.098" (2.50mm)
Base Product Number SRN4026
Other Names SRN4026-100MTR,SRN4026-100MCT,2266-SRN4026-100M,SRN4026-100MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274326-SRN4026-100M
Ultra Librarian 3D Model Ultra Librarian SRN4026-100M CAD Model

Description

The SRN4026 series inductor is a drum core, wirewound type of inductor with a semi-shielded package.

  • Inductance: 10µH
  • Tolerance: ±20%
  • Height: 0.098" (2.50mm)
  • DC Resistance (DCR): 102mOhm
  • Core Material: Ferrite
  • Q @ Freq: 11 @ 7.96MHz
  • Frequency of Self-Resonant: 26MHz
  • Package/Case: Nonstandard
  • Current Rating: 970mA
  • Operating Temperature Range: -40°C ~ 125°C
  • Manufacturer: Bourns Inc.
