Same model may have multiple batches, images only for reference.

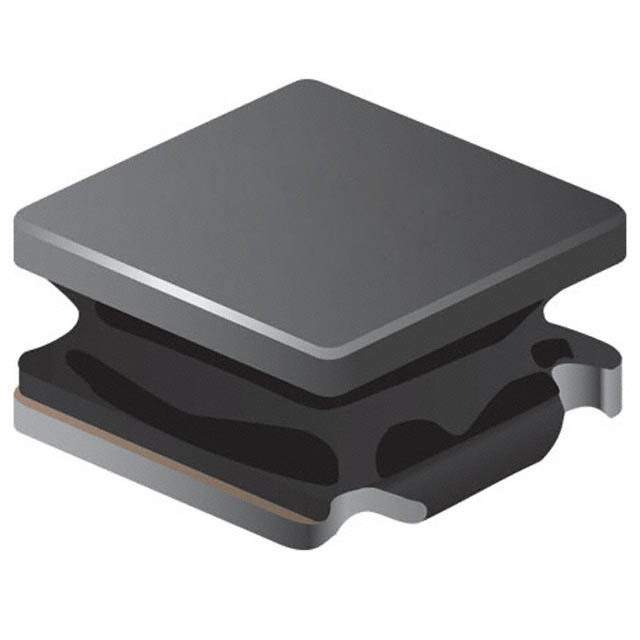

SRN3015-6R8M Real Image
Same model may have multiple batches, images only for reference.

SRN3015-6R8M

Part No SRN3015-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN3015-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3015
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.05A
Shielding Semi-Shielded
DC Resistance (DCR) 211mOhm Max
Q @ Freq 10 @ 7.96MHz
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number SRN3015
Other Names SRN3015-6R8MTR,SRN3015-6R8MCT,SRN3015-6R8MDKR,SRN30156R8M
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274376-SRN3015-6R8M
Ultra Librarian 3D Model Ultra Librarian SRN3015-6R8M CAD Model

Description

The Bourns Inc. SRN3015 inductor with part number 1274376-SRN3015-6R8M is a fixed inductor.

  • Design: Drum Core, Wirewound inductor
  • Shielding: Semi-Shielded
  • Inductance: 6.8 µH
  • Tolerance: ±20%
  • Package Type: Tape & Reel
  • Mounting: SMD (SMT)
  • Material Core: Ferrite
  • Q @ Freq: 10 @ 7.96MHz
  • Frequency Self-Resonant: 50MHz
  • DC Resistance (DCR): 211mOhm Max
  • Operating Temperature: -40°C ~ 125°C
  • Dimensions: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • MSL level: 1 (Unlimited)
  • REACH: Unaffected
