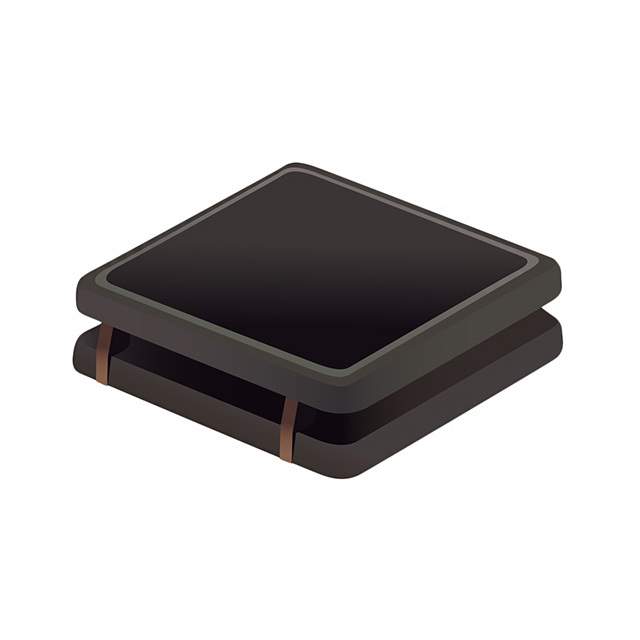

SRN3010TA-100M Real Image
Same model may have multiple batches, images only for reference.

SRN3010TA-100M

Part No SRN3010TA-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN3010TA-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3010TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 630mA
Shielding Semi-Shielded
DC Resistance (DCR) 350mOhm
Q @ Freq 22 @ 1MHz
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN3010TA
Other Names SRN3010TA-100MTR,SRN3010TA-100MDKR,SRN3010TA-100MCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274390-SRN3010TA-100M
Ultra Librarian 3D Model Ultra Librarian SRN3010TA-100M CAD Model

Description

The SRN3010TA-100M is an inductor, coil, or choke that is a part of the SRN3010TA series.

  • Type: Drum core, wirewound
  • Package/Case: Non-standard
  • Height: 0.039 inches
  • Dimension: 0.118 inches x 0.118 inches
  • Tolerance: ±20%
  • DC Resistance (DCR): 350mOhm
  • Current Rating: 800 mA
  • Q @ Freq: 22 @ 1MHz
  • Frequency Self-Resonant: 40MHz
