Same model may have multiple batches, images only for reference.

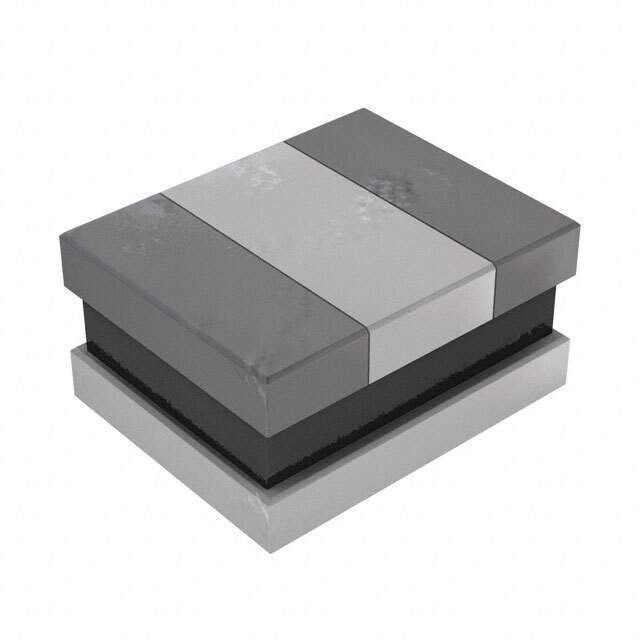

SRN2010-R47M Real Image
Same model may have multiple batches, images only for reference.

SRN2010-R47M

Part No SRN2010-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2010-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2010
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 3.8A
Shielding Semi-Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 9 @ 1MHz
Frequency - Self Resonant 230MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.040" (1.02mm)
Base Product Number SRN2010
Other Names SRN2010-R47MCT,SRN2010-R47MTR,SRN2010-R47MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274434-SRN2010-R47M
Ultra Librarian 3D Model Ultra Librarian SRN2010-R47M CAD Model

Description

The Bourns Inc. SRN2010-R47M is a semi-shielded fixed inductor.

  • Type: Drum core, wirewound
  • Core Material: Ferrite
  • Inductance: 470 nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 42mOhm Max
  • Q @ Freq: 9 @ 1MHz
  • Frequency Self-Resonant: 230MHz
  • Package/Case: Nonstandard
  • Mounting: Surface mount technology (SMT)
  • Height: 0.040" (1.02mm)
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Current Rating: 3.3A
