Same model may have multiple batches, images only for reference.

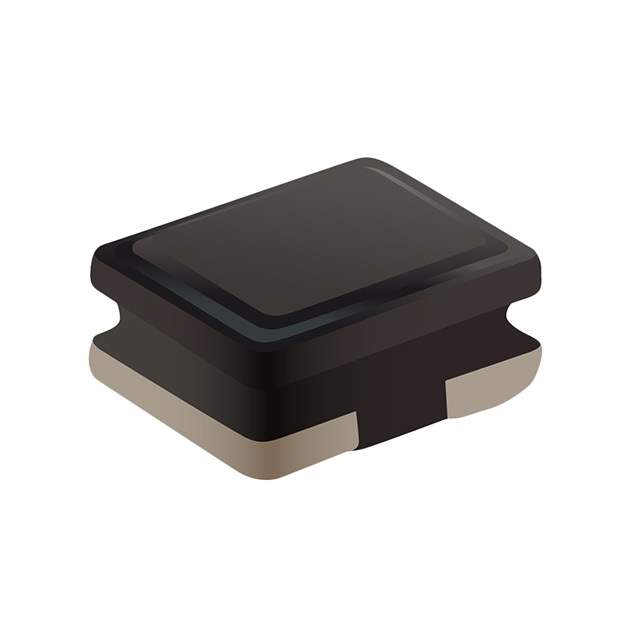

SRN2009T-3R3M Real Image
Same model may have multiple batches, images only for reference.

SRN2009T-3R3M

Part No SRN2009T-3R3M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2009T-3R3M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2009T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 850 mA
Current - Saturation (Isat) 850mA
Shielding Semi-Shielded
DC Resistance (DCR) 250mOhm
Q @ Freq 15 @ 1MHz
Frequency - Self Resonant 120MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
Base Product Number SRN2009T
Other Names SRN2009T-3R3MCT,SRN2009T-3R3MTR,SRN2009T-3R3MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274443-SRN2009T-3R3M
Ultra Librarian 3D Model Ultra Librarian SRN2009T-3R3M CAD Model

Description

The Bourns Inc SRN2009T-3R3M is a fixed inductor that has an inductance of 3.3 μH and is shielded semi-shielded.

  • Core: drum core wirewound type
  • Mounting: surface mount device
  • Applications: power supplies, DC-DC converters, and automotive systems
  • Core Material: ferrite
