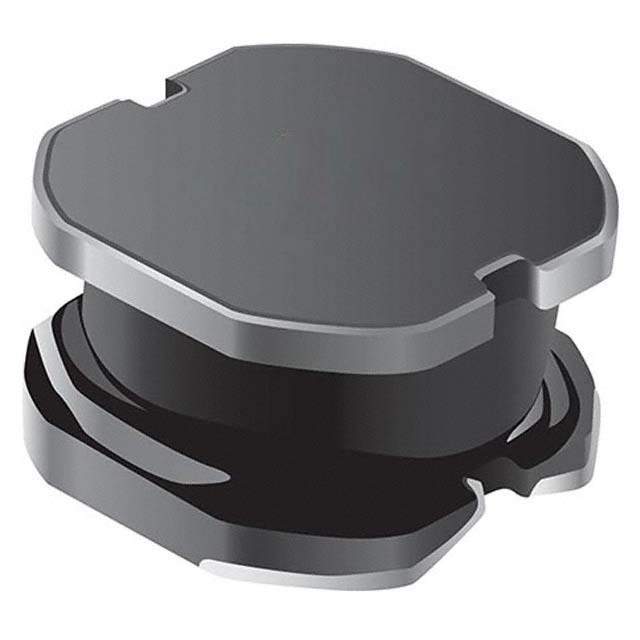

SRN1060-470M Real Image
Same model may have multiple batches, images only for reference.

SRN1060-470M

Part No SRN1060-470M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN1060-470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN1060
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 2.3A
Shielding Semi-Shielded
DC Resistance (DCR) 110mOhm Max
Q @ Freq 16 @ 2.52MHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.386" W (10.00mm x 9.80mm)
Height - Seated (Max) 0.236" (6.00mm)
Base Product Number SRN1060
Other Names SRN1060-470MCT,SRN1060-470MTR,SRN1060470M,SRN1060-470MDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274447-SRN1060-470M
Ultra Librarian 3D Model Ultra Librarian SRN1060-470M CAD Model

Description

The Bourns Inc. SRN1060-470M is a fixed inductor with an inductance of 47 µH.

  • Series: SRN1060
  • Type: drum core, wirewound
  • Shielding: semi-shielded
  • Height: 0.236" (6.00mm)
  • Package: tape & reel
  • Package Type: nonstandard
  • Tolerance: ±20%
  • Core Material: ferrite
  • Q @ Freq: 16 @ 2.52MHz
  • Frequency Self-Resonant: 6MHz
  • Dimension: 0.394" L x 0.386" W (10.00mm x 9.80mm)
  • Mounting: surface mountable
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 2.5 A
  • Saturation Current: 2.3A
