Same model may have multiple batches, images only for reference.

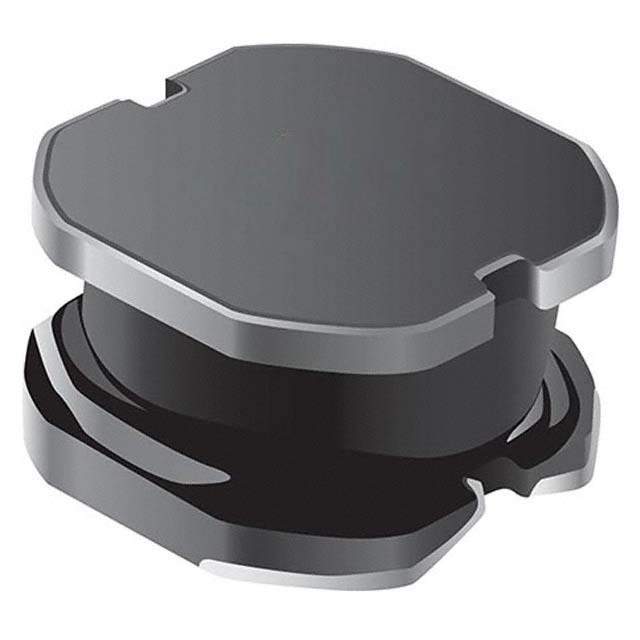

SRN1060-151M Real Image
Same model may have multiple batches, images only for reference.

SRN1060-151M

Part No SRN1060-151M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN1060-151M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN1060
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±20%
Current Rating (Amps) 1.25 A
Current - Saturation (Isat) 1.35A
Shielding Semi-Shielded
DC Resistance (DCR) 300mOhm Max
Q @ Freq 13 @ 2.52MHz
Frequency - Self Resonant 3.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.386" W (10.00mm x 9.80mm)
Height - Seated (Max) 0.236" (6.00mm)
Base Product Number SRN1060
Other Names SRN1060151M,SRN1060-151MDKR,SRN1060-151MCT,SRN1060-151MTR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274449-SRN1060-151M
Ultra Librarian 3D Model Ultra Librarian SRN1060-151M CAD Model

Description

The SRN1060 series inductor from Bourns Inc. is a semi-shielded fixed inductor with an inductance of 150 µH.

  • Tolerance: ±20%
  • DC Resistance: 300mOhm Max
  • Q @ Freq: 13 @ 2.52MHz
  • Frequency Self-Resonant: 3.5MHz
  • Package/Case: non-standard
  • Height Seated (max): 0.236" (6.00mm)
  • Current Rating: 1.25A
  • Mounting: SMD (SMT)
