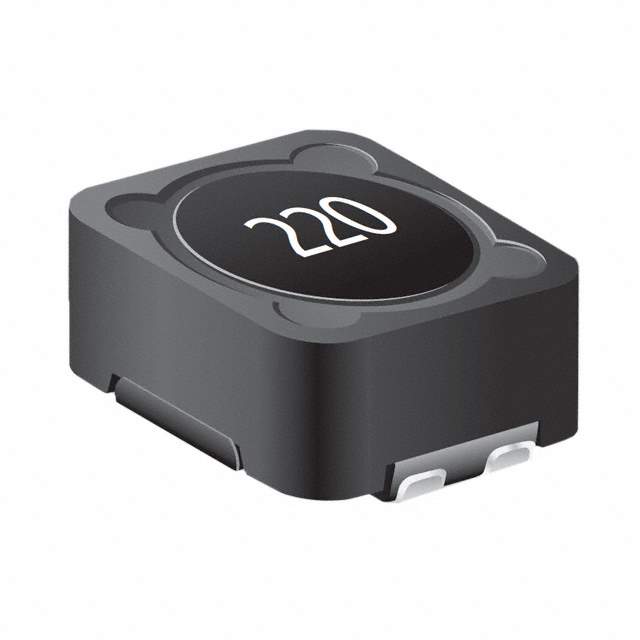

SRF1260A-821M Real Image
Same model may have multiple batches, images only for reference.

SRF1260A-821M

Part No SRF1260A-821M
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Datasheet
SRF1260A-821M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Bourns Inc.
Series SRF1260A
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 820 µH
Inductance - Connected In Series 3.28 mH
Tolerance ±20%
Current Rating - Parallel 600 mA
Current Rating - Series 301 mA
Current Saturation - Parallel 770 mA
Current Saturation - Series 385 mA
DC Resistance (DCR) - Parallel 1.46Ohm Max
DC Resistance (DCR) - Series 5.363Ohm Max
Shielding Shielded
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.244" (6.20mm)
Base Product Number SRF1260A
Other Names SRF1260A-821M,SRF1260A-821MCT,SRF1260A-821MDKR,SRF1260A-821MTR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274969-SRF1260A-821M
Ultra Librarian 3D Model Ultra Librarian SRF1260A-821M CAD Model

Description

The SRF1260A-821M is a shielded array, signal transformer from Bourns Inc.

  • Tolerance: ±20%
  • Package: Tape & reel
  • Height: 0.244" (6.20mm)
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Number of Coils: 2
  • Inductance Series: 3.28 mH
  • Inductance Parallel: 820 µH
  • Current Rating Series: 301mA
  • Current Rating Parallel: 600mA
  • Current Saturation Series: 385mA
  • Current Saturation Parallel: 770mA
  • DC Resistance (DCR) Series: 5.363Ohm Max
  • DC Resistance (DCR) Parallel: 1.46Ohm Max
  • Temperature Range: -40°C ~ 125°C
  • Rating: AEC-Q200
