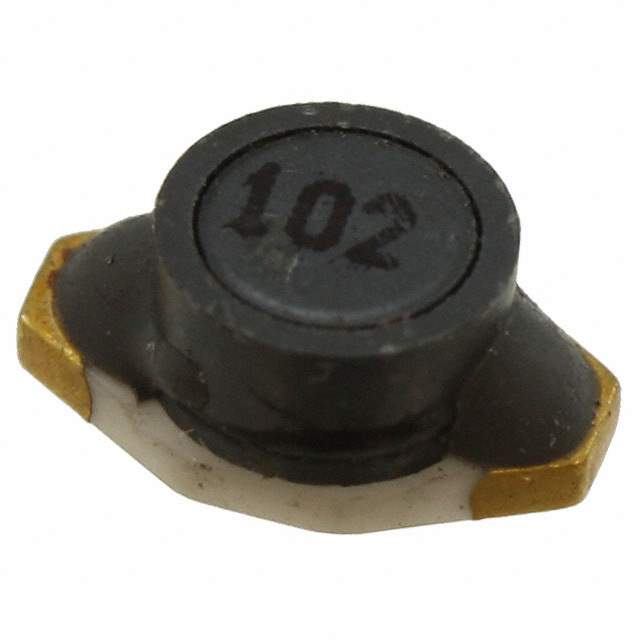

Same model may have multiple batches, images only for reference.

SRE6603-472M

Name: SRE6603-472M
Brand: Bourns Inc.
SKU: 1274467
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SRE6603-472M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRE6603-472M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRE6603
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	4.7 mH
Tolerance	±20%
Current Rating (Amps)	60 mA
Current - Saturation (Isat)	21mA
Shielding	Shielded
DC Resistance (DCR)	13.9Ohm Max
Q @ Freq	50 @ 100kHz
Frequency - Self Resonant	1MHz
Temperature Range - Operating	-25°C ~ 105°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)	0.115" (2.92mm)
Base Product Number	SRE6603
Standard Package	2,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1274467-SRE6603-472M
Ultra Librarian 3D Model	Ultra Librarian SRE6603-472M CAD Model

Alternative Products

Description

The SRE6603-472M is an electronic component manufactured by Bourns Inc.

Type: fixed inductor
Applications: power supplies and filters
Height: 0.115 inches
Dimension: 0.260 inches L x 0.175 inches W
Q @ Freq: 50 @ 100kHz
Frequency Self-Resonant: 1MHz
Tolerance: ±20%
DC Resistance (DCR): 13.9Ohm Max
Operating Temperature Range: -25°C to 105°C
