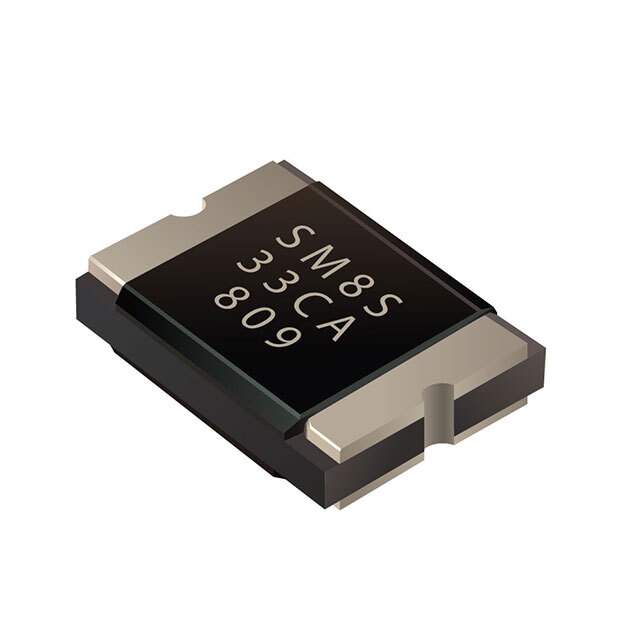

Same model may have multiple batches, images only for reference.

SM8SF36A-Q

Name: SM8SF36A-Q
Brand: Bourns Inc.
SKU: 1301539
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SM8SF36A-Q
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Datasheet	SM8SF36A-Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Bourns Inc.
Series	Automotive, AEC-Q101, SM8SF-Q
Package	Tape & Reel (TR)
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	58.1V
Current - Peak Pulse (10/1000µs)	120A
Power - Peak Pulse	7000W (7kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Package / Case	2-LDFN
Supplier Device Package	2-DFN (8.1x10.5)
Base Product Number	SM8SF
Standard Package	750
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1301539-SM8SF36A-Q
Ultra Librarian 3D Model	Ultra Librarian SM8SF36A-Q CAD Model

Alternative Products

Description

The Bourns Inc. SM8SF36A-Q series TVS diode is a unidirectional zener type diode.

Manufacturer: Bourns Inc.
Voltage Breakdown (min): 40V
Voltage Clamping (max) @ Ipp: 58.1V
Power Peak Pulse: 7000W (7kW)
Current Peak Pulse (10/1000µs): 120A
Application: Automotive
Temperature Range: -55°C to 175°C (TJ)
Package/Case: 2-LDFN
Dimension: 2-DFN (8.1x10.5)
Package: Tape and reel (TR)
