Same model may have multiple batches, images only for reference.

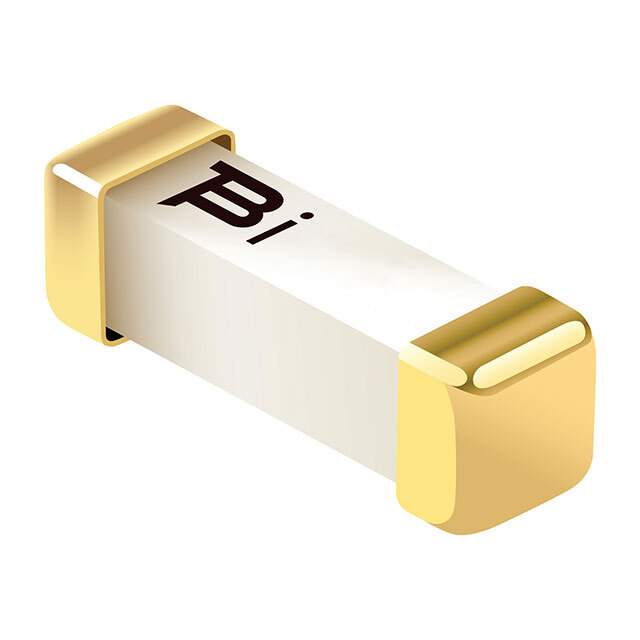

SF-3812F3000T-2 Real Image
Same model may have multiple batches, images only for reference.

SF-3812F3000T-2

Part No SF-3812F3000T-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-3812F3000T-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-3812F-T
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 30 A
Voltage Rating - AC 250 V
Voltage Rating - DC 80 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 130A DC
Melting I2t 900
Approval Agency cUL, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm)
DC Cold Resistance 0.0018 Ohms
Base Product Number SF-3812
Other Names SF-3812F3000T-2CT,SF-3812F3000T-2TR,SF-3812F3000T-2DKR
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1301957-SF-3812F3000T-2
Ultra Librarian 3D Model Ultra Librarian SF-3812F3000T-2 CAD Model

Description

The SinglFuse™ SF-3812F-T series fast blow fuse is a reliable and efficient option for your circuit protection needs.

  • Voltage Rating: 250V AC and 80V DC
  • Breaking Capacity: 100A AC and 130A DC
  • Melting I2t: 900
  • DC Cold Resistance: 0.0018 Ohms
  • Package Type: 2-SMD, Square End Block
  • Mounting: Surface Mount Technology (SMT)
  • Packaging: Tape and Reel
  • Standard Package: 2,500
  • Temperature Range: -55°C to 125°C
  • Approval: cUL and UL
