Same model may have multiple batches, images only for reference.

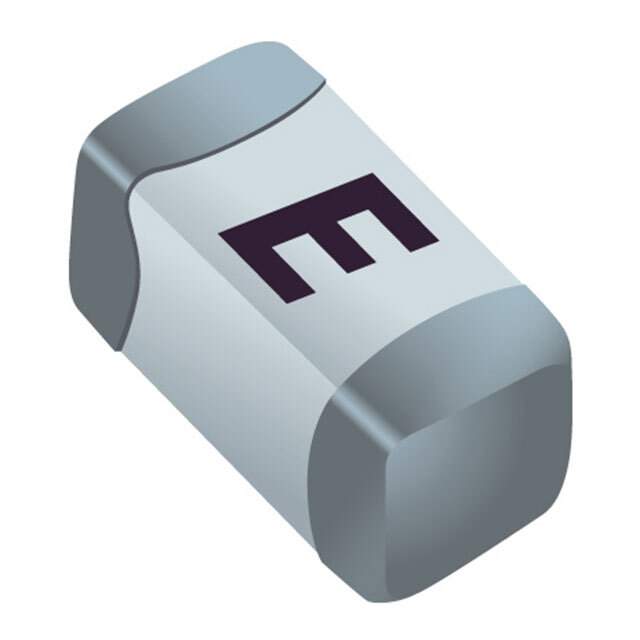

SF-0603S400M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603S400M-2

Part No SF-0603S400M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603S400M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.5
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.063" L x 0.031" W x 0.037" H (1.60mm x 0.80mm x 0.95mm)
DC Cold Resistance 0.018 Ohms
Base Product Number SF-0603
Other Names SF-0603S400M-2DKR,SF-0603S400M-2CT,SF-0603S400M-2TR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302100-SF-0603S400M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603S400M-2 CAD Model

Description

The SinglFuse™ SF-0603SxxxM series by Bourns Inc. is a board mountable (cartridge style excluded) slow blow fuse designed for circuit protection.

  • Voltage Rating: 32 V
  • Breaking Capacity: 35A
  • Melting I2t: 0.5
  • DC Cold Resistance: 0.018 Ohms
  • Package: Tape and reel
  • Standard Package: 4,000
  • Mounting: SMD (SMT)
  • Dimension: 0.063" L x 0.031" W x 0.037" H (1.60mm x 0.80mm x 0.95mm)
  • Operating Temperature Range: -55°C ~ 125°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.10.0040
