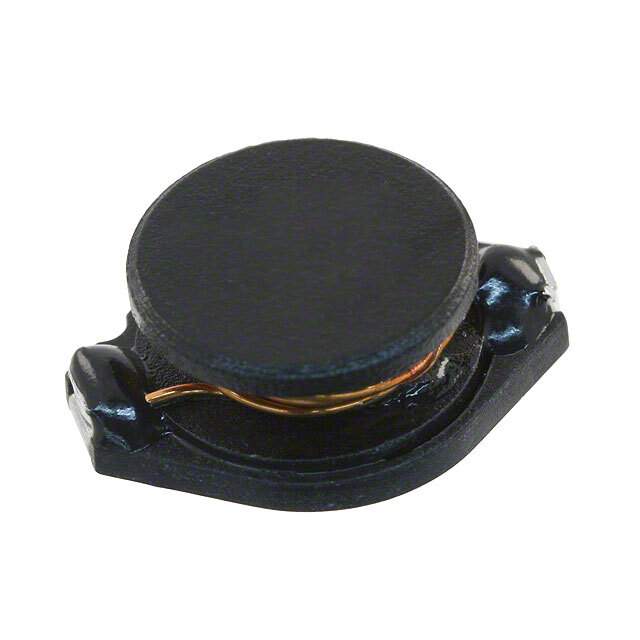

SDR1806-150ML Real Image
Same model may have multiple batches, images only for reference.

SDR1806-150ML

Part No SDR1806-150ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1806-150ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1806
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 4.3 A
Current - Saturation (Isat) 8A
Shielding Unshielded
DC Resistance (DCR) 35mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.272" (6.90mm)
Base Product Number SDR1806
Other Names -SDR1806-150ML,-SDR1806-150MLCT,SDR1806-150ML,SDR1806150ML,-SDR1806-150MLTR,-SDR1806-150ML,2266-SDR1806-150ML,SDR1806-150MLTR,SDR1806-150MLCT
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274556-SDR1806-150ML
Ultra Librarian 3D Model Ultra Librarian SDR1806-150ML CAD Model

Description

The Bourns Inc. SDR1806 series fixed inductor is a drum core, wirewound component that comes with an inductance of 15 µH and is rated @ 4.3 A.

  • Tolerance: ±20%
  • Core Material: Ferrite
  • Package/Case: Non-standard
  • Packaging: Tape and reel or cut tape packaging with a standard package of 250
  • Operating Temperature Range: -40°C to 125°C
  • Dimensions: 0.720" L x 0.551" W (18.30mm x 14.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
