Same model may have multiple batches, images only for reference.

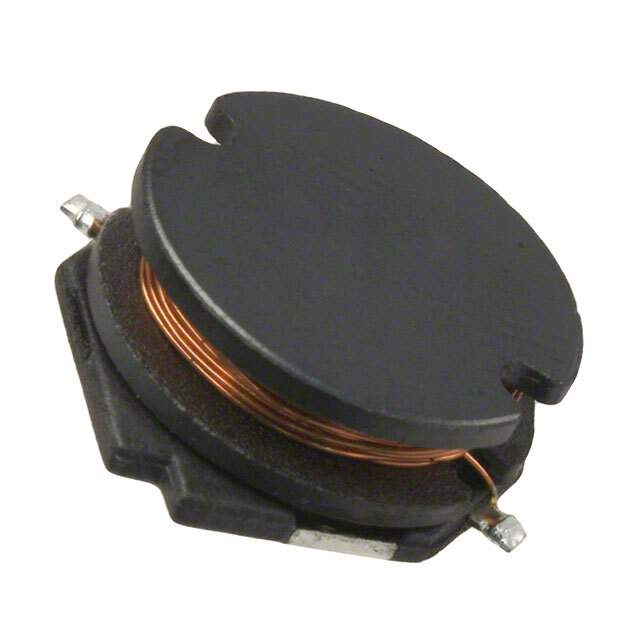

SDR1305-6R8Y Real Image
Same model may have multiple batches, images only for reference.

SDR1305-6R8Y

Part No SDR1305-6R8Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1305-6R8Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1305
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±25%
Current Rating (Amps) 4.3 A
Current - Saturation (Isat) 5.2A
Shielding Unshielded
DC Resistance (DCR) 24mOhm Max
Q @ Freq 17 @ 7.96MHz
Frequency - Self Resonant 32MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SDR1305
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274593-SDR1305-6R8Y
Ultra Librarian 3D Model Ultra Librarian SDR1305-6R8Y CAD Model

Description

The SDR1305-6R8Y from Bourns Inc. is a fixed inductor designed for use in various applications, including power supplies, DC-DC converters, and other power management circuits.

  • Construction: Wirewound
  • Package: Low-profile
  • Popularity: High
  • Supply and Demand: Limited
  • Saturation Current Rating: 5.2A
