Same model may have multiple batches, images only for reference.

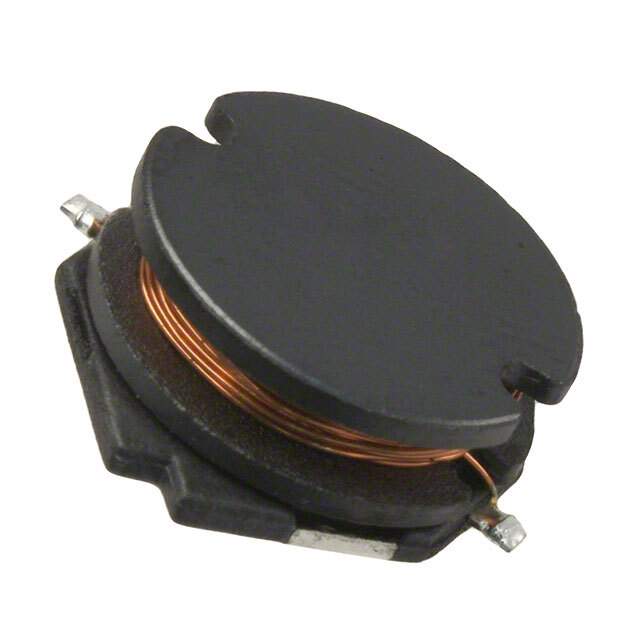

SDR1305-150M Real Image
Same model may have multiple batches, images only for reference.

SDR1305-150M

Part No SDR1305-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1305-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1305
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 3.7A
Shielding Unshielded
DC Resistance (DCR) 46mOhm Max
Q @ Freq 28 @ 2.52MHz
Frequency - Self Resonant 24MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SDR1305
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274600-SDR1305-150M
Ultra Librarian 3D Model Ultra Librarian SDR1305-150M CAD Model

Description

The Bourns SDR1305 series is a range of drum core wirewound inductors that are ideal for use in a variety of applications.

  • Shielding: Unshielded
  • Package/Case: Nonstandard
  • Inductance: 15 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 28 @ 2.52MHz
  • Frequency Self-Resonant: 24MHz
  • DC Resistance (DCR): 46mOhm Max
  • Current Rating: 3.3 A
  • Height: 0.201" (5.10mm)
  • Mounting Technology: SMD (SMT)
  • Temperature Range: -40°C to 125°C
