Same model may have multiple batches, images only for reference.

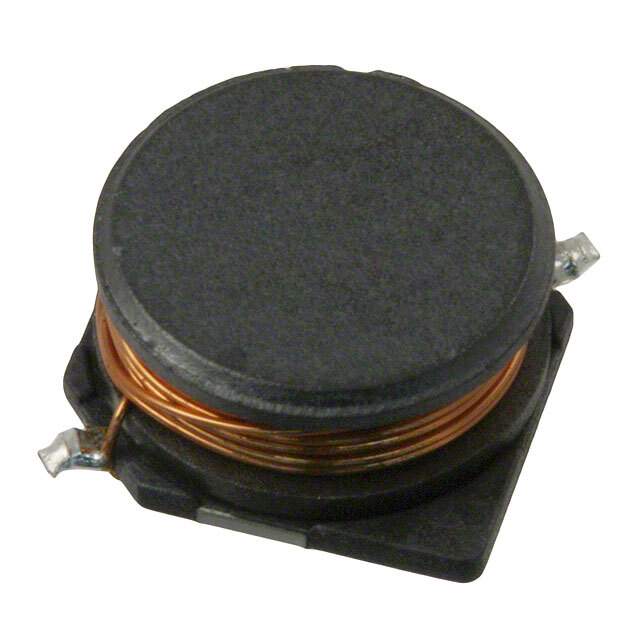

SDR1045-150M Real Image
Same model may have multiple batches, images only for reference.

SDR1045-150M

Part No SDR1045-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1045-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1045
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 3A
Shielding Unshielded
DC Resistance (DCR) 100mOhm Max
Q @ Freq 26 @ 2.52MHz
Frequency - Self Resonant 23.7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR1045
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274620-SDR1045-150M
Ultra Librarian 3D Model Ultra Librarian SDR1045-150M CAD Model

Description

The Bourns SDR1045-150M is a fixed inductor that is surface-mounted and is available in tape and reel packaging.

  • Structure: Unshielded drum core wirewound
  • Inductance: 15µH
  • Tolerance: ±20%
  • DC Resistance: 100mOhm max
  • Q @ Freq: 26 @ 2.52MHz
  • Frequency of Self-Resonance: 23.7MHz
  • Current Rating: 2.5A
  • Package/Case: Non-standard
  • Operating Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT)
