Same model may have multiple batches, images only for reference.

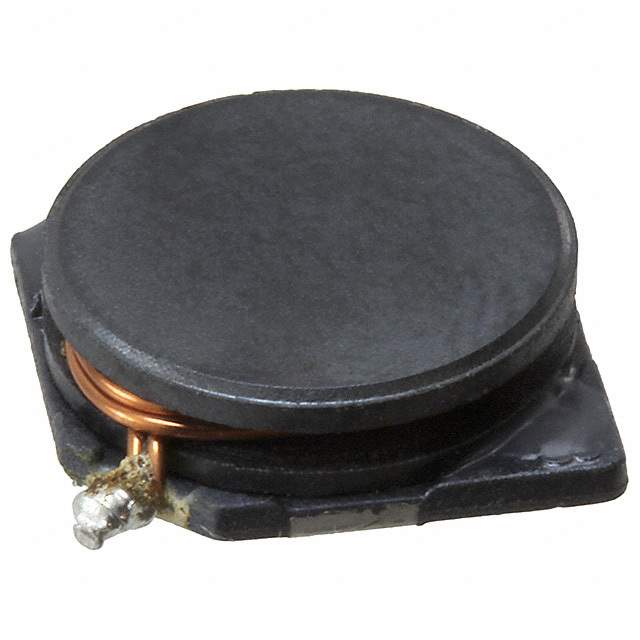

SDR1030-101K Real Image
Same model may have multiple batches, images only for reference.

SDR1030-101K

Part No SDR1030-101K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1030-101K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1030
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 750mA
Shielding Unshielded
DC Resistance (DCR) 540mOhm Max
Q @ Freq 14 @ 796kHz
Frequency - Self Resonant 9.3MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR1030
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274628-SDR1030-101K
Ultra Librarian 3D Model Ultra Librarian SDR1030-101K CAD Model

Description

The SDR1030 series inductor is a drum core, wirewound type component with an inductance of 100 µH and a tolerance of ±10%.

  • Material: Ferrite
  • DC Resistance (DCR): 540mOhm Max
  • Shielding: Unshielded
  • Q @ Freq: 14 @ 796kHz
  • Frequency of Self-Resonant: 9.3MHz
  • Current Rating (amps): 700mA
  • Mounting: SMD (SMT)
  • Package: Tape & reel (TR)
  • Temperature Range: -40°C ~ 125°C
  • REACH: Unaffected
  • Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Manufacturer: Bourns Inc.
