Same model may have multiple batches, images only for reference.

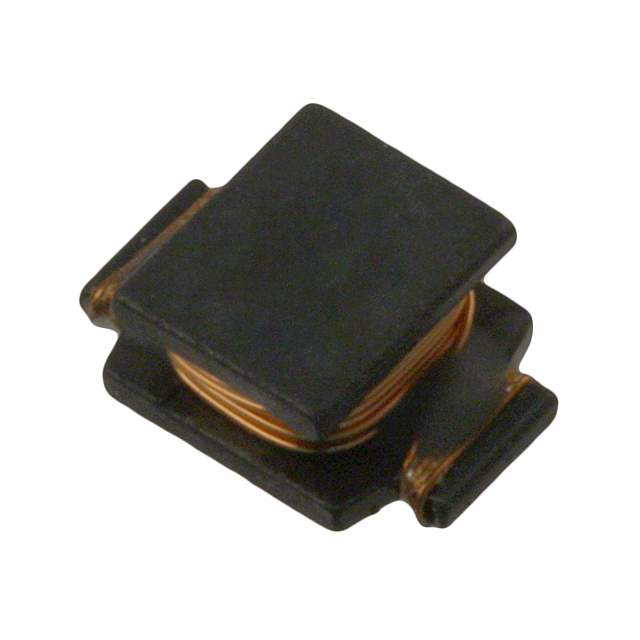

SDR0703-121KL Real Image
Same model may have multiple batches, images only for reference.

SDR0703-121KL

Part No SDR0703-121KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0703-121KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 120 µH
Tolerance ±10%
Current Rating (Amps) 260 mA
Current - Saturation (Isat) 370mA
Shielding Unshielded
DC Resistance (DCR) 1.75Ohm Max
Q @ Freq 32 @ 796kHz
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
Other Names -SDR0703-121KLTR,SDR0703-121KLTR,SDR0703-121KL,-SDR0703-121KL,-SDR0703-121KLCT,SDR0703121KL,SDR0703-121KLCT,-SDR0703-121KL
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274732-SDR0703-121KL
Ultra Librarian 3D Model Ultra Librarian SDR0703-121KL CAD Model

Description

The Bourns Inc. SDR0703-121KL 1274732-SDR0703-121KL is a fixed inductor that falls under the category of inductors, coils, chokes.

  • Win Source Part Number: 1274732-SDR0703-121KL
  • Standard Package: 500
  • Mounting: Surface-mount
  • Package/Case: Nonstandard
  • Inductance: 120 µH
  • Tolerance: ±10%
  • Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
  • Base Product Number: SDR0703
