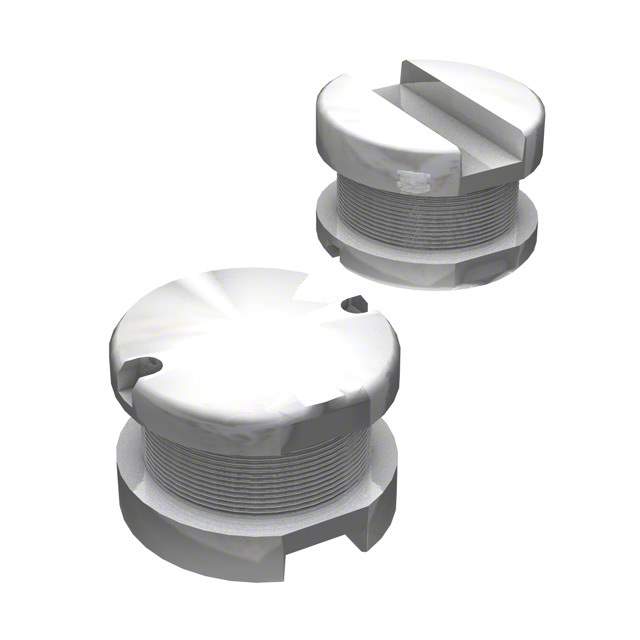

SDR0603-331KL Real Image
Same model may have multiple batches, images only for reference.

SDR0603-331KL

Part No SDR0603-331KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0603-331KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0603
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±10%
Current Rating (Amps) 200 mA
Current - Saturation (Isat) 360mA
Shielding Unshielded
DC Resistance (DCR) 3.2Ohm Max
Q @ Freq 28 @ 796kHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.154" (3.90mm)
Base Product Number SDR0603
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274760-SDR0603-331KL
Ultra Librarian 3D Model Ultra Librarian SDR0603-331KL CAD Model

Description

The Bourns Inc. SDR0603-331KL is a drum core, wirewound inductor.

  • Package/Case: Nonstandard
  • Inductance: 330 µH
  • Tolerance: ±10%
  • Q @ Freq: 28 @ 796kHz
  • Frequency of Self-Resonant: 5MHz
  • DC Resistance (DCR): 3.2Ohm Max
  • Current Rating (Amps): 200 mA
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • Standard Package: 400
  • Mounting: Surface
