Same model may have multiple batches, images only for reference.

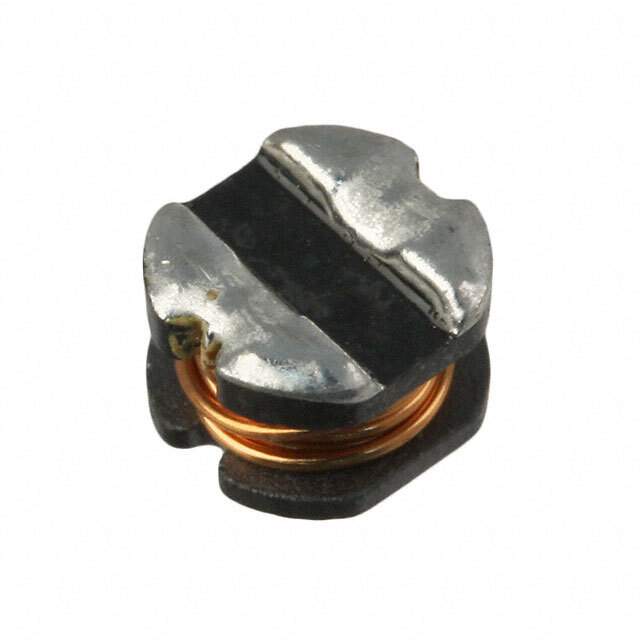

SDR0403-5R6ML Real Image
Same model may have multiple batches, images only for reference.

SDR0403-5R6ML

Part No SDR0403-5R6ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0403-5R6ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0403
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 2.4A
Shielding Unshielded
DC Resistance (DCR) 100mOhm Max
Q @ Freq 28 @ 7.96MHz
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SDR0403
Other Names SDR0403-5R6ML,SDR04035R6ML,-SDR0403-5R6ML,-SDR0403-5R6ML,SDR0403-5R6MLTR,-SDR0403-5R6MLTR,SDR0403-5R6MLDKR,-SDR0403-5R6MLCT,SDR0403-5R6MLCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274833-SDR0403-5R6ML
Ultra Librarian 3D Model Ultra Librarian SDR0403-5R6ML CAD Model

Description

The SDR0403 series from Bourns Inc. is a range of drum core, wirewound inductors.

  • Package: Tape and Reel
  • Shielding: Unshielded
  • Inductance: 5.6 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 28 @ 7.96MHz
  • Frequency Self-Resonant: 45MHz
  • DC Resistance (DCR): 100mOhm Max
  • Package/Case: Nonstandard
  • Mounting Type: SMD (SMT)
  • Current Rating (amps): 1.6A
  • Inductance Frequency - Test: 1 kHz
  • Temperature Range - Operating: -40°C to 125°C
  • Dimension: 0.177" L x 0.157" W (4.50mm x 4.00mm)
