Same model may have multiple batches, images only for reference.

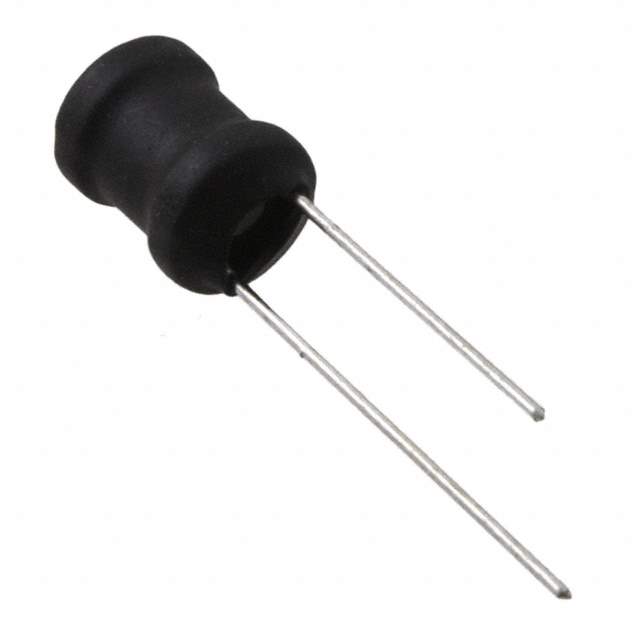

RLB9012-3R3ML Real Image
Same model may have multiple batches, images only for reference.

RLB9012-3R3ML

Part No RLB9012-3R3ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 5.5A 25 MOHM TH / 3.3 µH Unshielded Drum Core, Wirewound Inductor 5.5 A 25mOhm Max Radial, Vertical Cylinder
Datasheet
RLB9012-3R3ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Shielding Unshielded
DC Resistance (DCR) 25mOhm Max
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 65MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Base Product Number RLB9012
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number RLB90123R3ML
Standard Package 200
Win Source Part Number 1327974-RLB9012-3R3ML
Ultra Librarian 3D Model Ultra Librarian RLB9012-3R3ML CAD Model

Description

The RLB9012-3R3ML fixed inductor from Bourns Inc. is a drum core, wirewound type of inductor that has an inductance of 3.3 µH.

  • Seated Height: 0.480 inches (12.20mm)
  • Mounting: Through-Hole
  • Tolerance: ±20%
  • DC Resistance (DCR): 25mOhm max
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 7.96MHz
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
