Same model may have multiple batches, images only for reference.

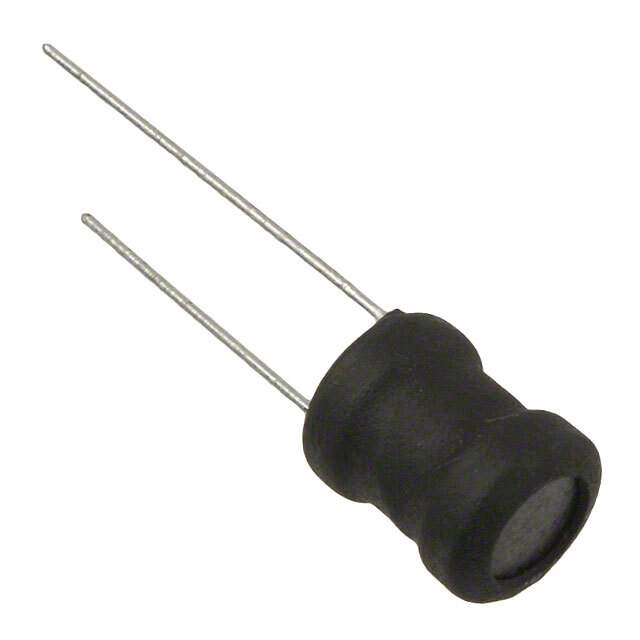

RLB0914-221KL Real Image
Same model may have multiple batches, images only for reference.

RLB0914-221KL

Part No RLB0914-221KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 800MA 600MOHM TH / 220 µH Unshielded Drum Core, Wirewound Inductor 800 mA 600mOhm Max Radial, Vertical Cylinder
Datasheet
RLB0914-221KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 1.5A
Shielding Unshielded
DC Resistance (DCR) 600mOhm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 2.4MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 796 kHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.512" (13.00mm)
Base Product Number RLB0914
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number -RLB0914-221KL,RLB0914221KL
Standard Package 200
Win Source Part Number 1327796-RLB0914-221KL
Ultra Librarian 3D Model Ultra Librarian RLB0914-221KL CAD Model

Description

The Bourns Inc. 1327796-RLB0914-221KL is a drum core, wirewound inductor with a ferrite core material.

  • Inductance: 220 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 600mOhm Max
  • Current Rating: 800mA
  • Shielding: Unshielded
  • Q @ Freq: 20 @ 796kHz
  • Frequency - Self Resonant: 2.4MHz
  • Mounting: Through Hole
  • Height - Seated (Max): 0.512" (13.00mm)
  • Core Material: Ferrite
  • Type: Drum Core, Wirewound
