Same model may have multiple batches, images only for reference.

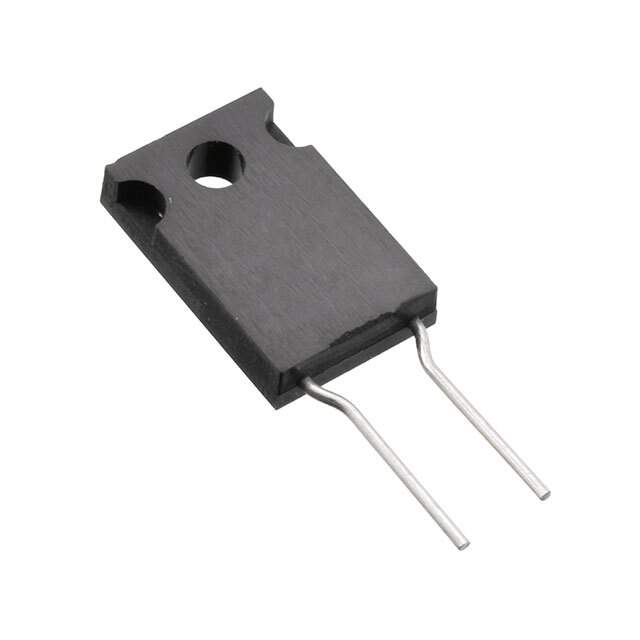

PWR220T-35-20R0F Real Image
Same model may have multiple batches, images only for reference.

PWR220T-35-20R0F

Part No PWR220T-35-20R0F
Manufacturer Bourns Inc.
Catalog Through Hole Resistors
Description RES 20 OHM 1% 35W TO220-2 / 20 Ohms ±1% 35W Through Hole Resistor TO-220-2, Variant Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film
Datasheet
PWR220T-35-20R0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Manufacturer Bourns Inc.
Packaging Tube
Resistance 20 Ohms
Tolerance ±1%
Power (Watts) 35W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package TO-220-2, Variant
Supplier Device Package TO-220-2
Size / Dimension 0.398" L x 0.157" W (10.10mm x 4.00mm)
Height - Seated (Max) 0.575" (14.60mm)
Number of Terminations 2
Base Product Number PWR220T
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Standard Package 50
Win Source Part Number 1325873-PWR220T-35-20R0F
Ultra Librarian 3D Model Ultra Librarian PWR220T-35-20R0F CAD Model

Description

The Bourns Inc. PWR220T-35-20R0F is a through-hole resistor with a power of 35W and a resistance of 20 Ohms.

  • Power: 35W
  • Resistance: 20 Ohms
  • Series: PWR220T
  • Resistor Type: Thick Film
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Pulse-Withstanding: Yes
  • Size/Dimension: 0.398" L x 0.157" W (10.10mm x 4.00mm)
  • Height-Seated (Max): 0.575" (14.60mm)
  • Supplier Device Package: TO-220-2
  • Case/Package: Variant
